Repair Procedures: Installation

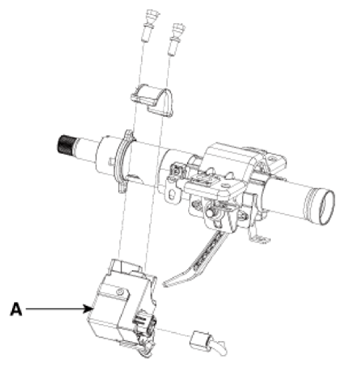

  1. Install the electronic steering column lock (A).
    CAUTION: Do not reuse the shear bolts.
    When installing the new shear bolts to the electronic steering column lock, tighten the shear bolts until its head is cut off.

    Tightening torque:

    7.0 - 13.0 N.m (0.7 - 1.3 kgf.m, 5.0 - 9.4 lb.ft)

    G14078943Courtesy of HYUNDAI MOTOR AMERICA
  2. Install the steering column.
  3. Install the crash pad lower panel.
