Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the steering column upper and lower shrouds.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

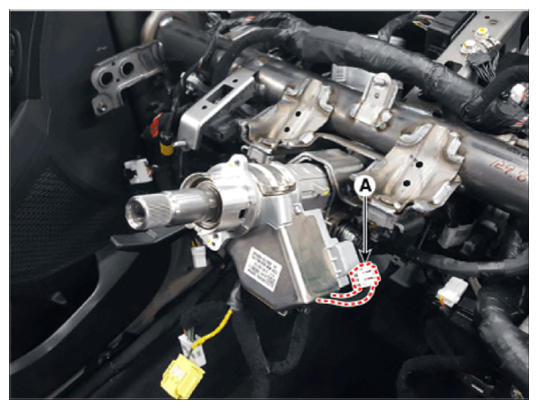

  4. Disconnect the electronic steering column lock connector (A).
    G14078941Courtesy of HYUNDAI MOTOR AMERICA

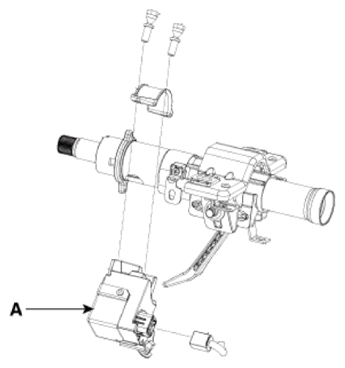

  5. Remove the electronic steering column lock (A) after loosening the mounting bolts.
    G14078942Courtesy of HYUNDAI MOTOR AMERICA
