Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.

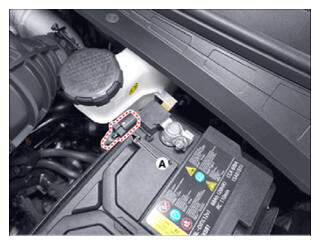

  2. Disconnect the battery sensor connector (A).
    G16176741Courtesy of HYUNDAI MOTOR AMERICA

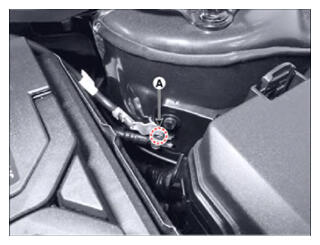

  3. After loosening the battery sneosr cable mounting bolt (A), and remove the battery sensor cable.
    G16176742Courtesy of HYUNDAI MOTOR AMERICA
