Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.
  2. Remove the front bumper assembly.

    (Refer to Body (Interior nad Exterior) - "FRONT BUMPER ASSEMBLY ")

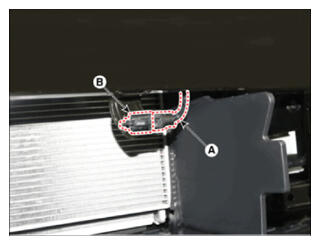

  3. Disconnect the connector (A), and then remove the ambient temperature sensor (B).
    G16176862Courtesy of HYUNDAI MOTOR AMERICA
