Components Location

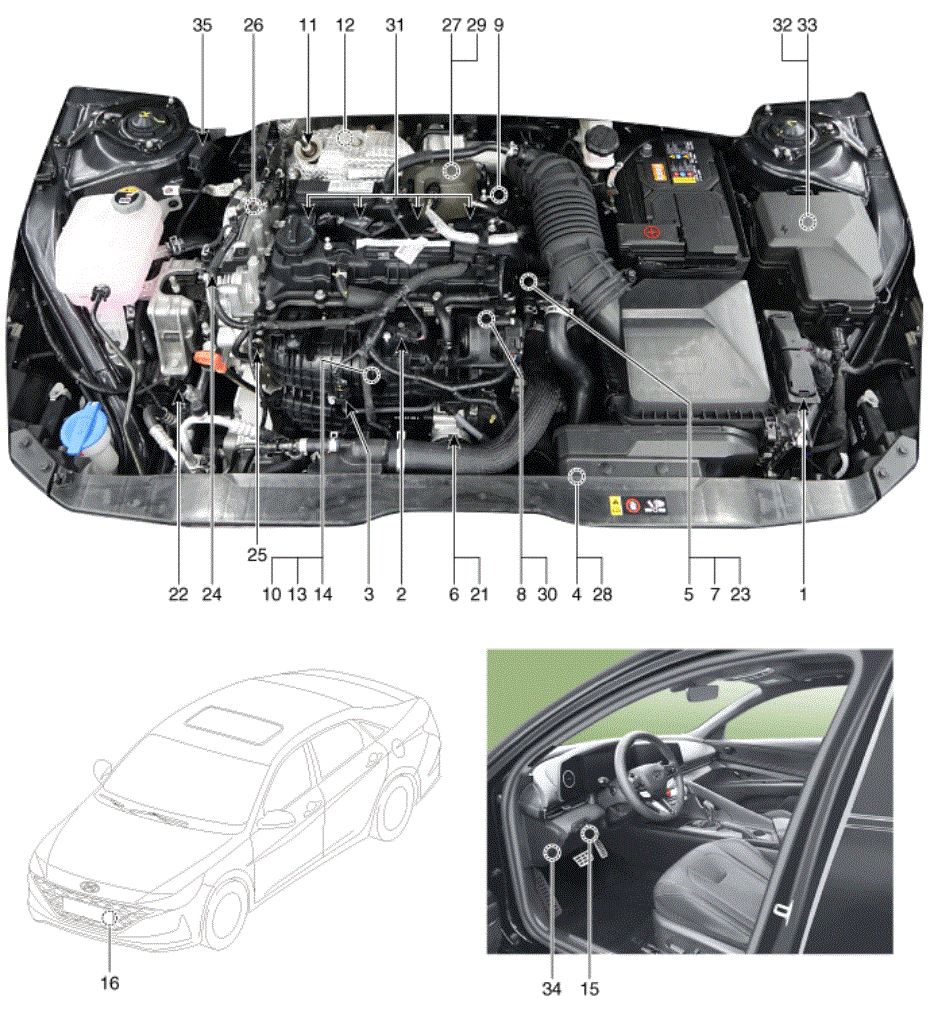

G16176828Courtesy of HYUNDAI MOTOR AMERICA

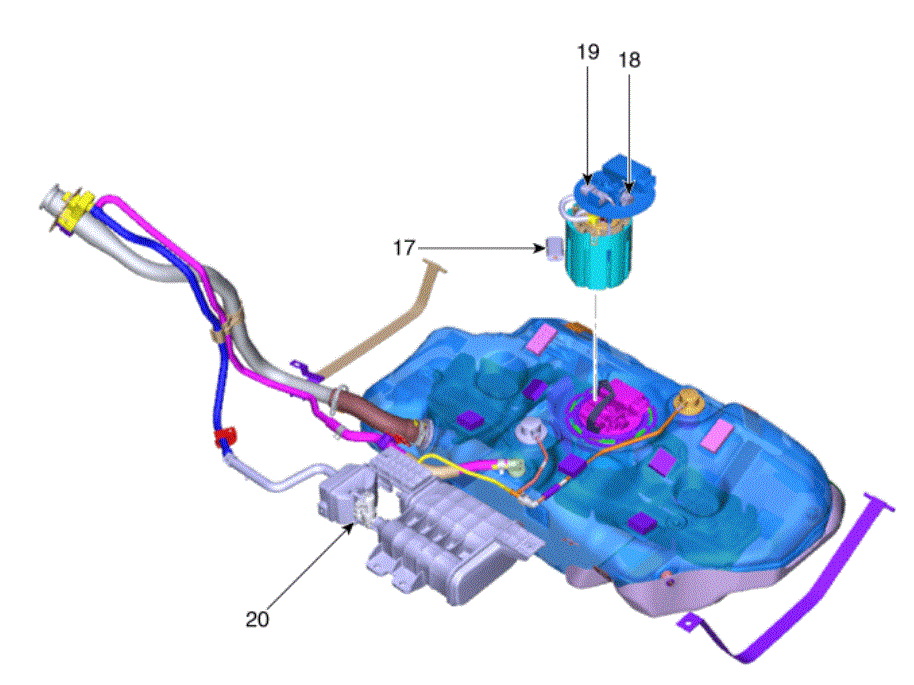

G00655787Courtesy of HYUNDAI MOTOR AMERICA

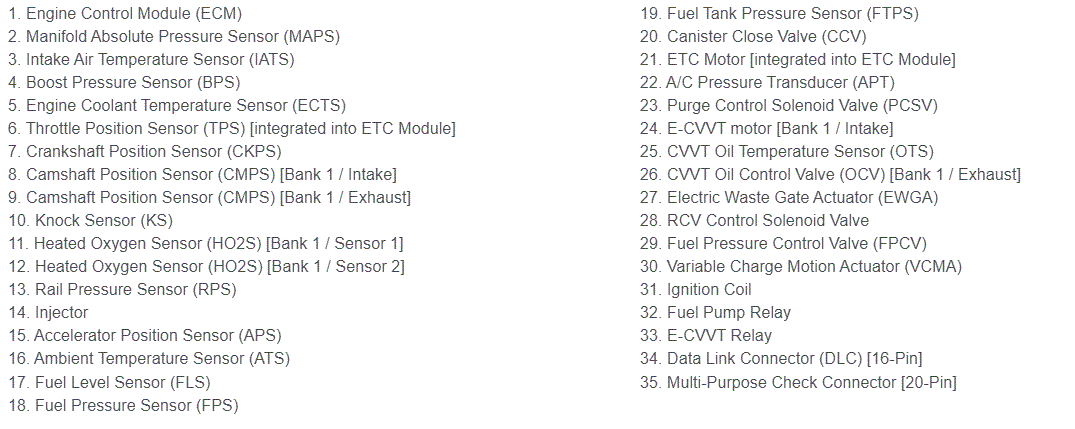

G00655788Courtesy of HYUNDAI MOTOR AMERICA

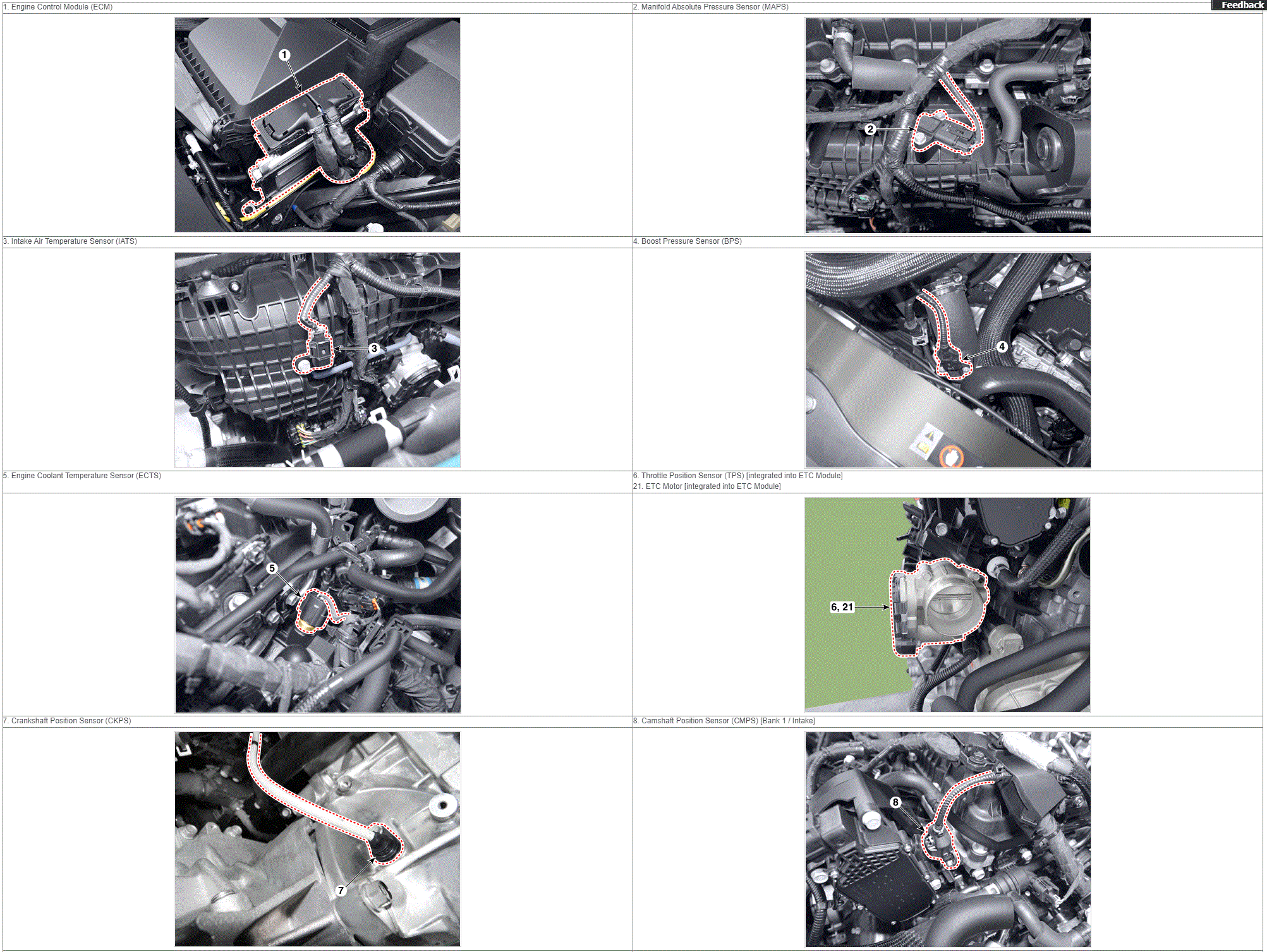

G16176829Courtesy of HYUNDAI MOTOR AMERICA

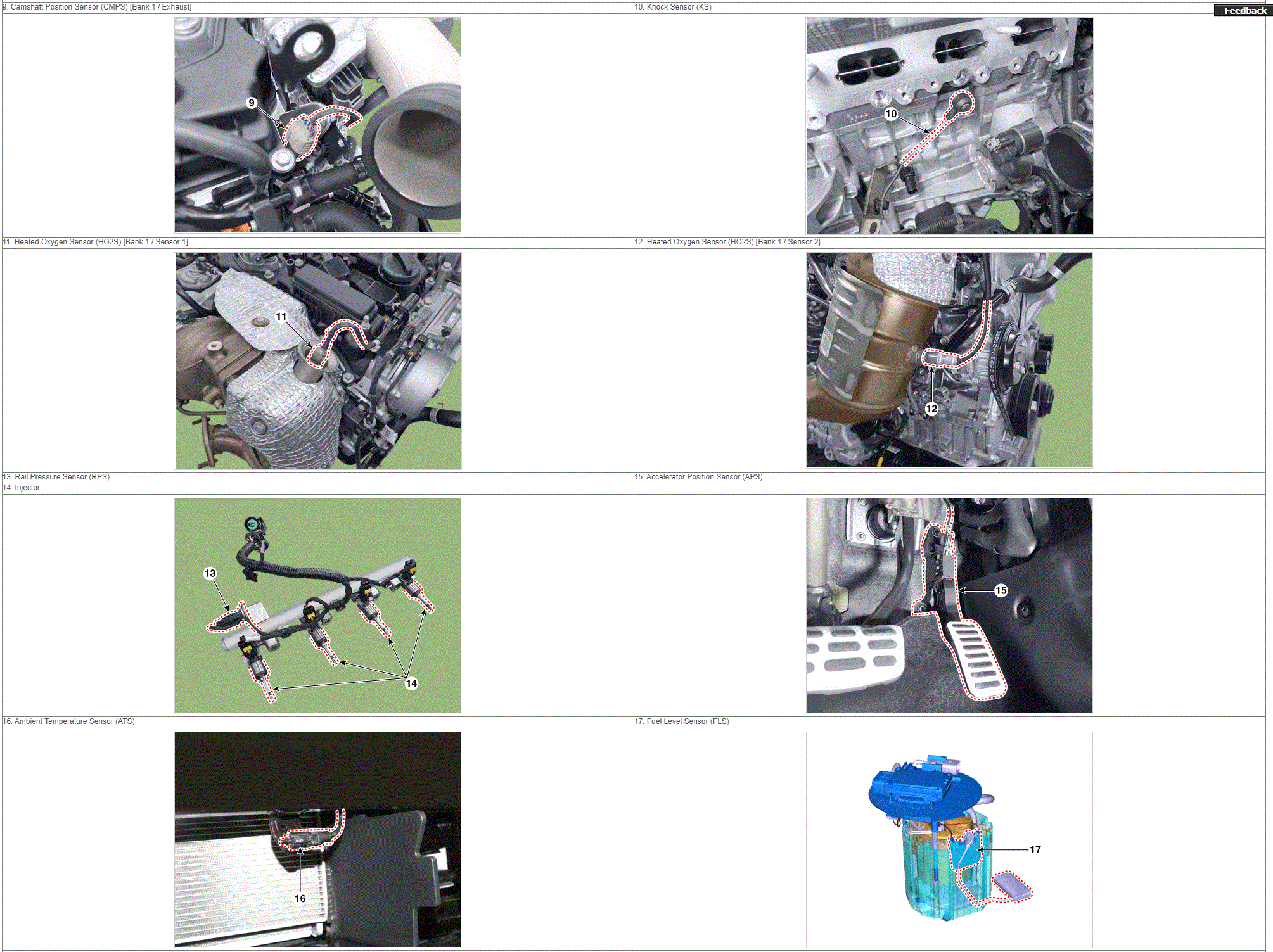

G16176830Courtesy of HYUNDAI MOTOR AMERICA

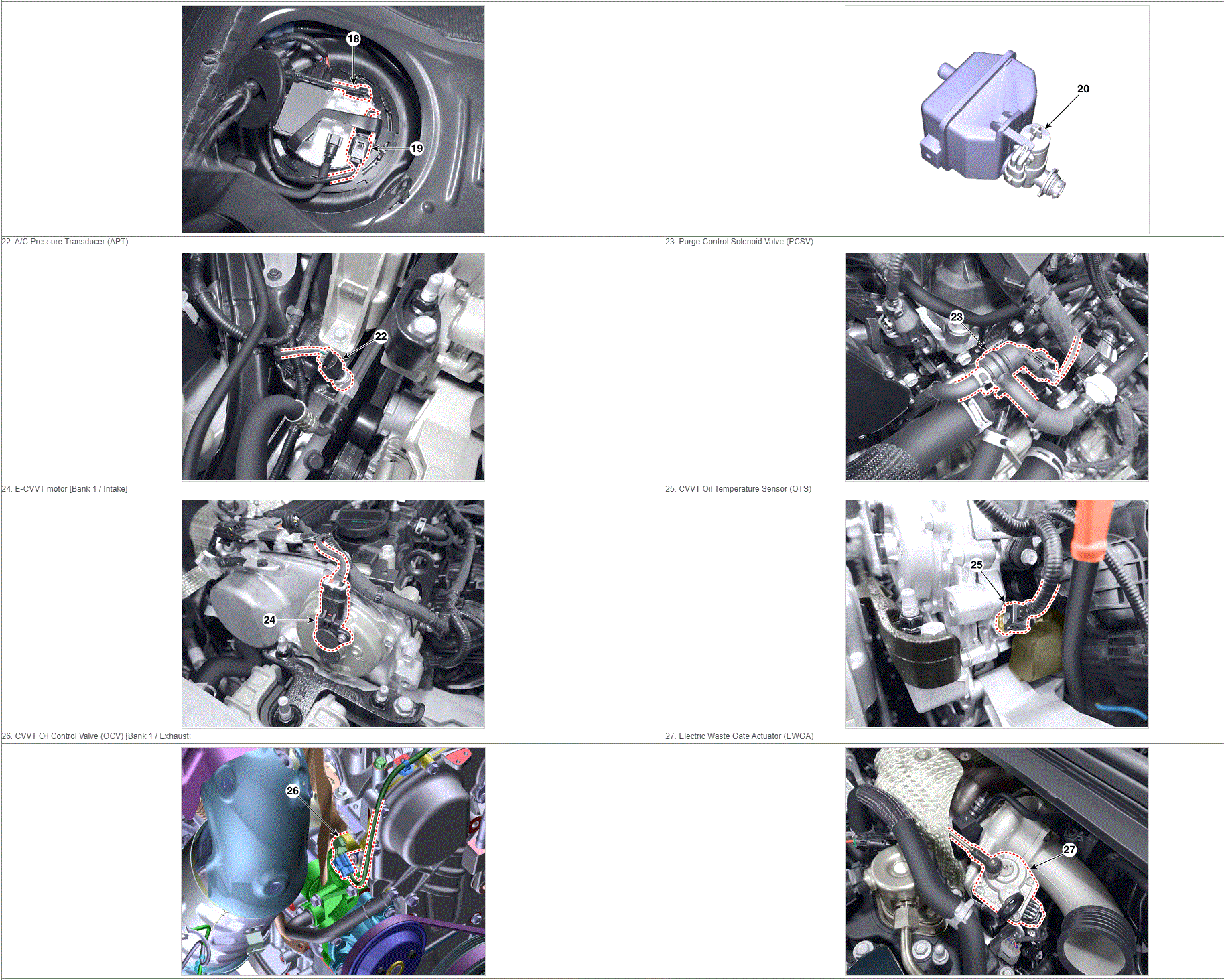

G16176831Courtesy of HYUNDAI MOTOR AMERICA

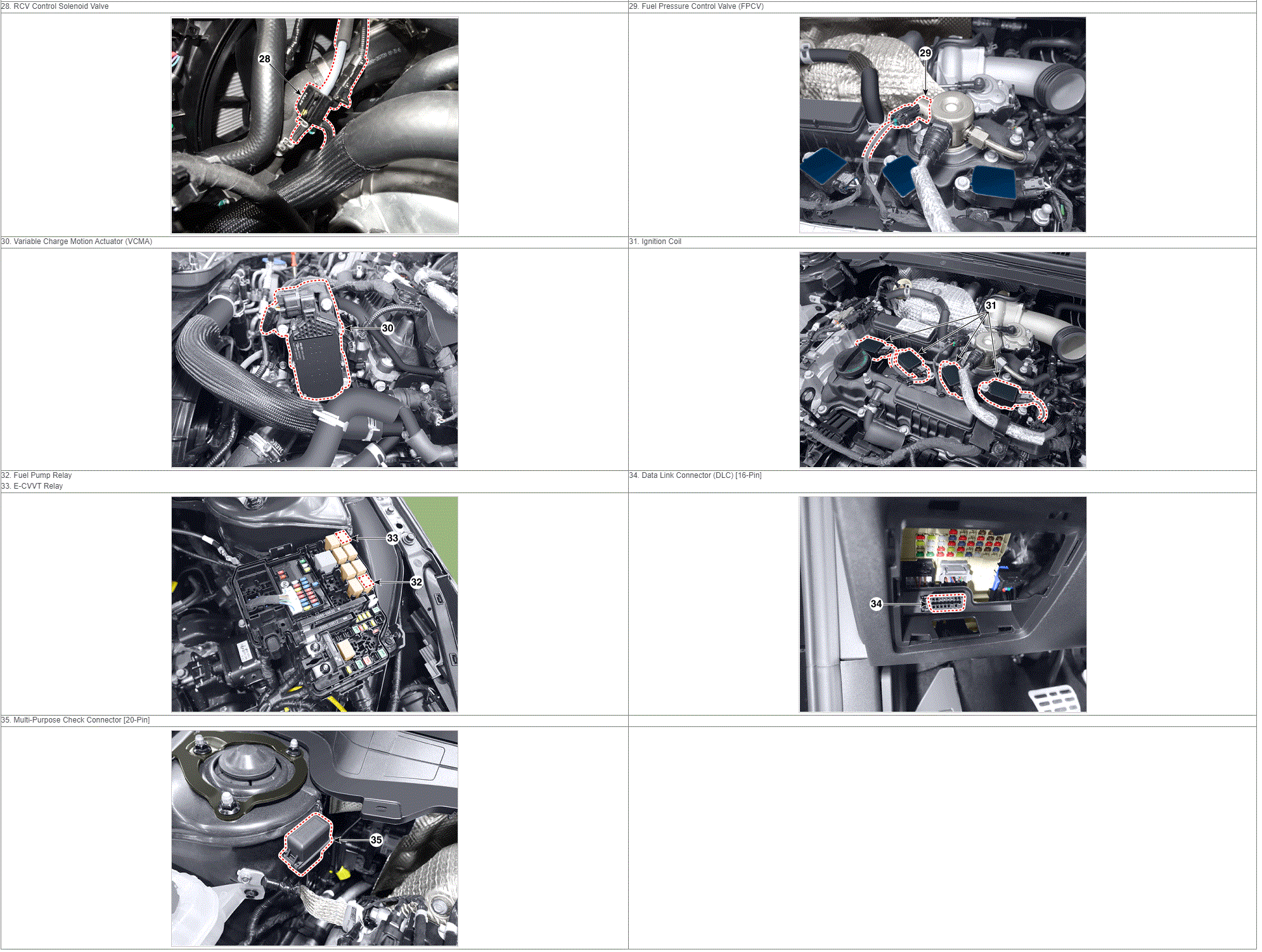

G16176832Courtesy of HYUNDAI MOTOR AMERICA
