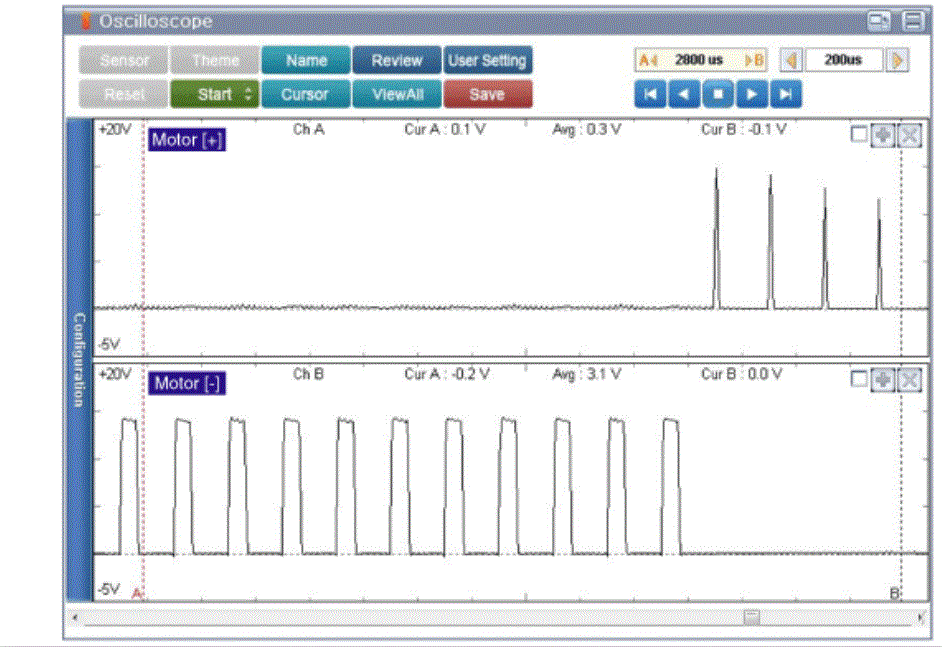

Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA

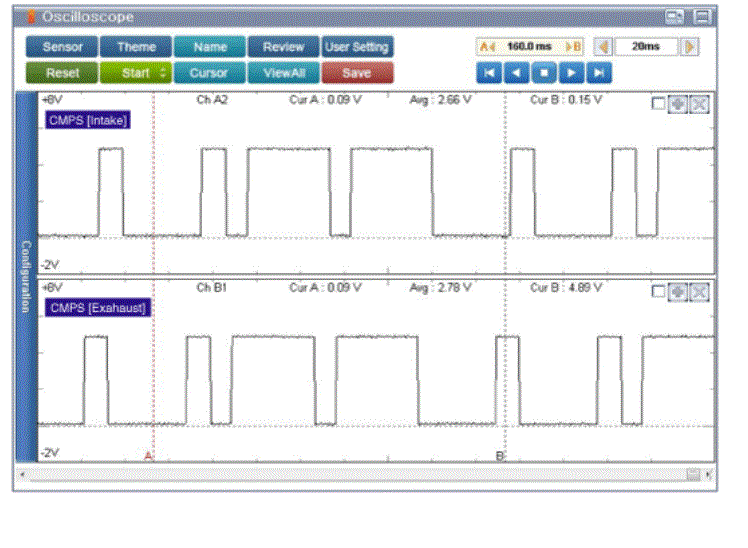

There is no separate sensor inside E-CVVT. Exhaust side 4-flank type target wheel is applied in order to compare CKPS and CMPS and calculate the valve timing.
