Repair Procedures: Removal
- Disconnect the battery (-) terminal.
- Remove the rear seat cushion.
(Refer to Body - "REAR SEAT ASSEMBLY ")

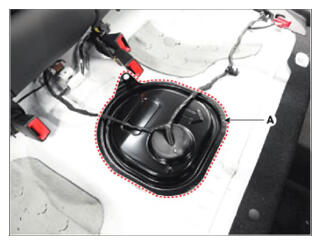

- Remove the fuel pump service cover (A).

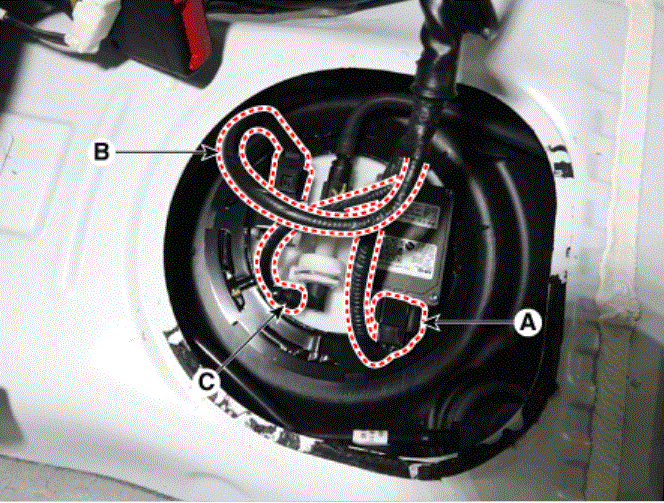

- Disconnect the fuel pump module connector (A).
- Disconnect the fuel tank pressure sensor connector (B).
- Disconnect the fuel pump pressure sensor connector (C).

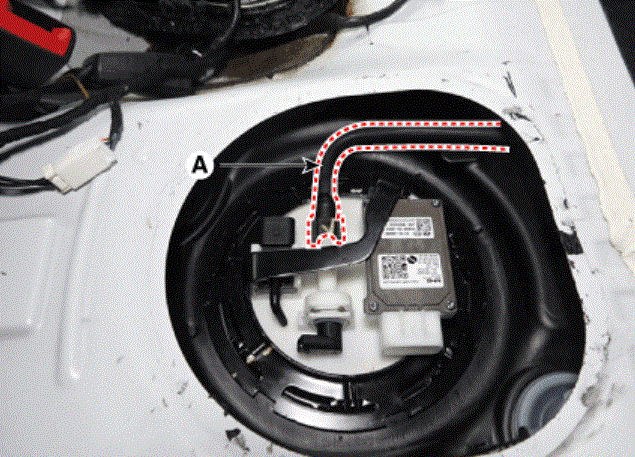

- Disconnect the fuel feed tube quick-connector (A).

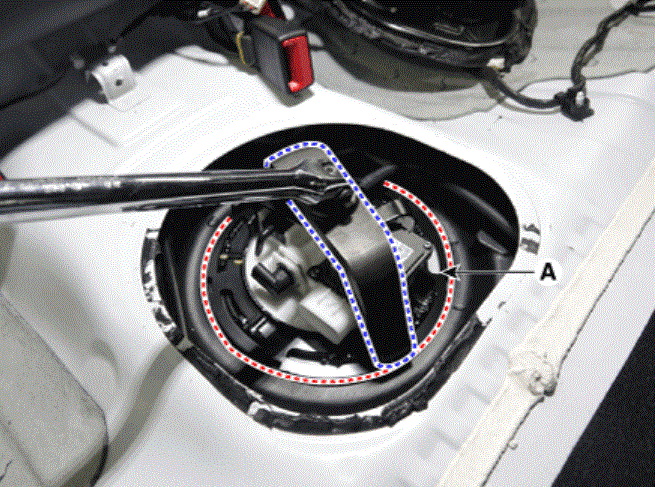

- Remove the locking ring (A) by using the special service tool [NO.; 09310-B8100]NOTE:
- When removing the locking ring, be careful not the damage the fuel tank and fuel pump.
- When removing the locking ring, press the upper area with hand and rotate the wrench counter clockwise.

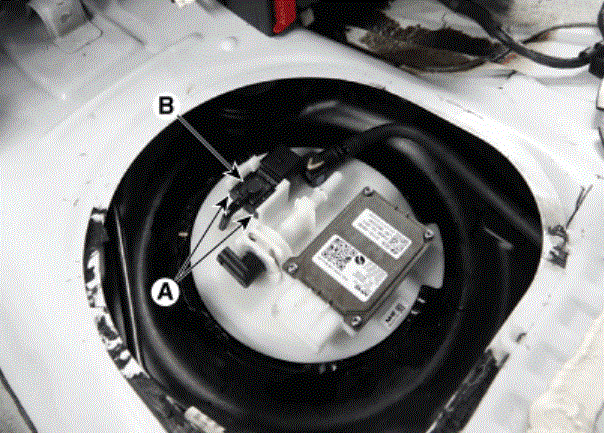

- Release the hook (A), and then remove the fuel tank pressure sensor (FTPS) (B) vertically from the fuel pump.
