Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.

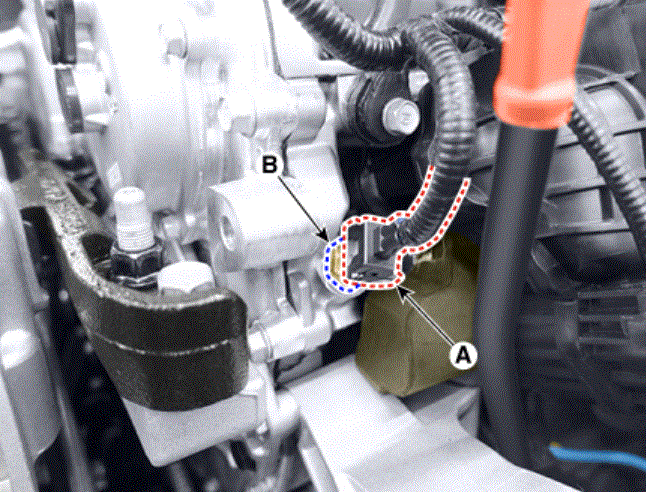

  2. Disconnect the oil temperature sensor connector (A), and then remove the sensor (B).

    Tightening torque:

    34.3 - 44.1 N.m (3.5 - 4.5 kgf.m, 25.3 - 32.5 lb.ft)

    G16176943Courtesy of HYUNDAI MOTOR AMERICA
