Repair Procedures: Installation

CAUTION:

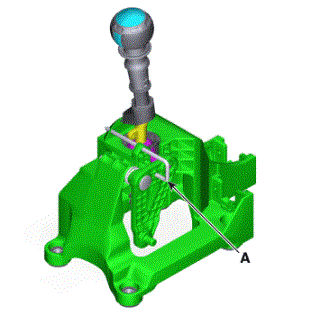

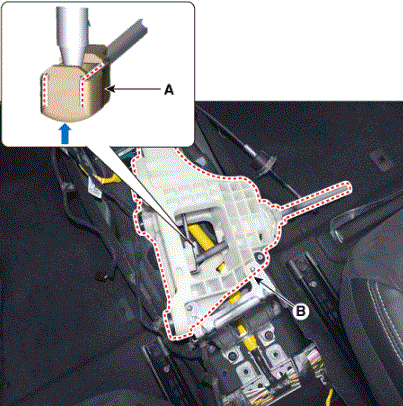

Place the shift lever and transaxle side lever in 4th shift position and insert the lever fixing pin (A).

Courtesy of HYUNDAI MOTOR AMERICA

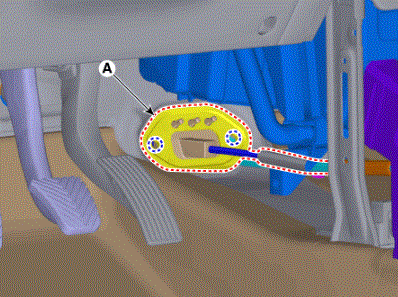

Install the retainer (A) and then tighten nut.
Tightening torque:

11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install the shift cable end (A) to the shift lever (B).

Courtesy of HYUNDAI MOTOR AMERICA

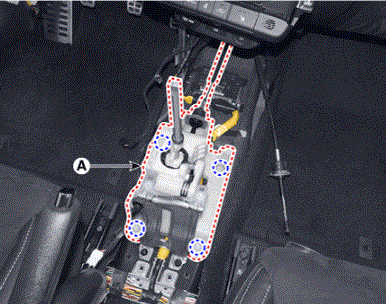

Install the shift lever (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

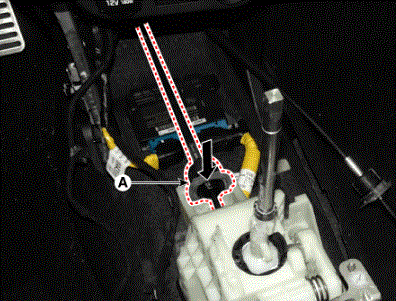

Install the shift cable socket (A).

Courtesy of HYUNDAI MOTOR AMERICA

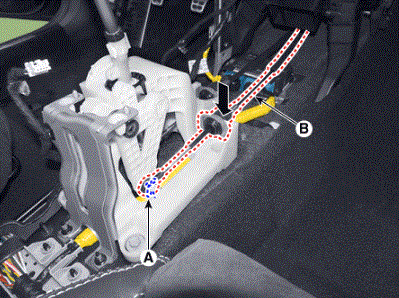

Install the select cable (B) and then install the snap pin (A).

Courtesy of HYUNDAI MOTOR AMERICA

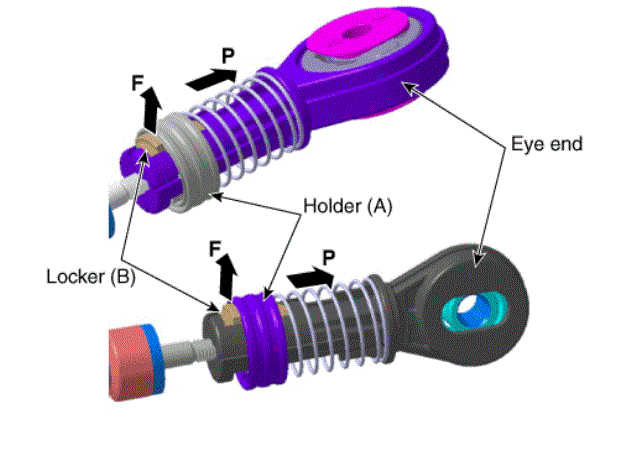

To adjust the length of the cable, move the locker (B) in the direction of "F" with pulling the holder (A) in the direction of "P".

Courtesy of HYUNDAI MOTOR AMERICA

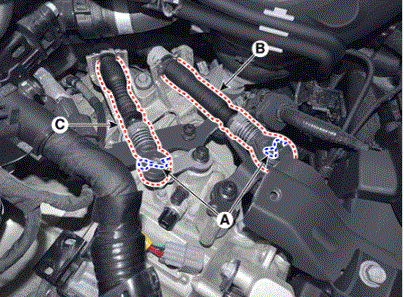

Install the shift cable (B) and select cable (C) and then Install the snap pin (A).

Courtesy of HYUNDAI MOTOR AMERICA

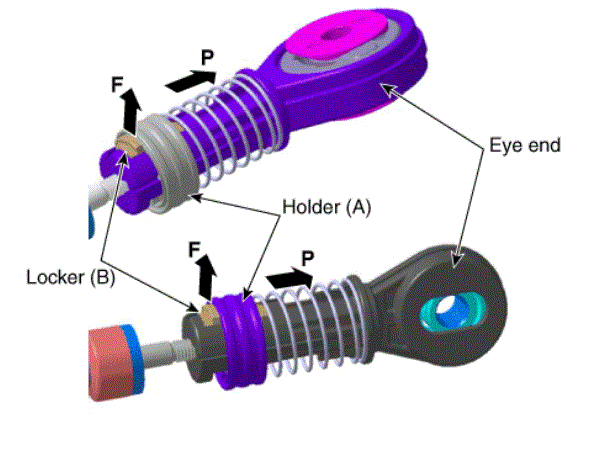

Tighten the holder (A) to the "P" directions after fixing the rockers (B) in the "F" direction.

Courtesy of HYUNDAI MOTOR AMERICA
Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Install the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the 4th fixed pin (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ")

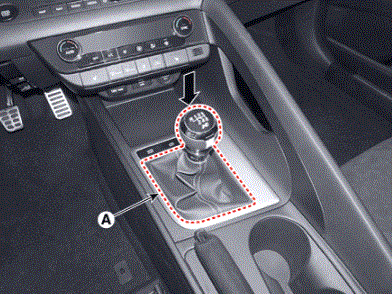

Install the shift lever knob & boots (A).

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Check operating of lever of transaxle side when operating shift lever after assembly. (1-6, R)
- If there is sticky feel, adjust the control cable length again.
  (Refer to Control Cable - "Control Cable ")
