Repair Procedures: Removal

  1. Move the shift lever to 4th gear.
  2. Turn OFF ignition switch and disconnect the negative (-) battery cable.
  3. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  4. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

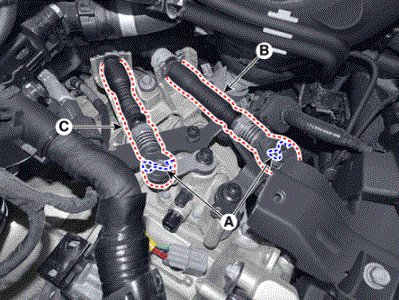

  5. Remove the snap pin (A) and then disconnect the shift cable (B) and the select cable (C) from the bracket.
    G16177194Courtesy of HYUNDAI MOTOR AMERICA

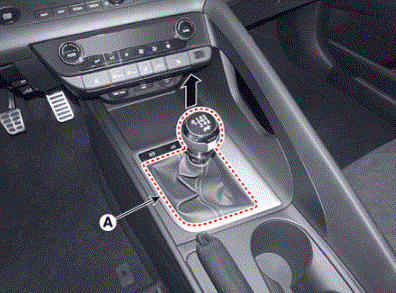

  6. Remove the shift lever knob & boots (A).
    G16177195Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

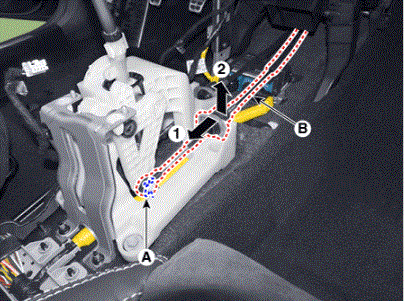

  8. Remove the snap pin (A) and then disconnect the select cable (B).
    G16177196Courtesy of HYUNDAI MOTOR AMERICA

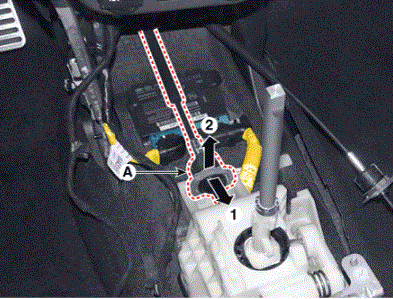

  9. Disconnect the shift cable socket (A).
    G16177197Courtesy of HYUNDAI MOTOR AMERICA

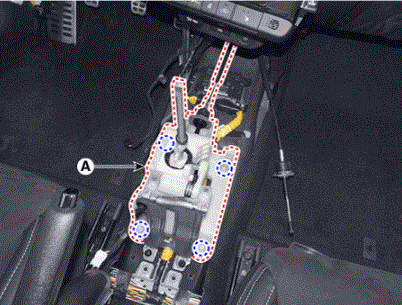

  10. Loosen the bolts and then disconnect the shift lever assembly (A).
    G16177198Courtesy of HYUNDAI MOTOR AMERICA

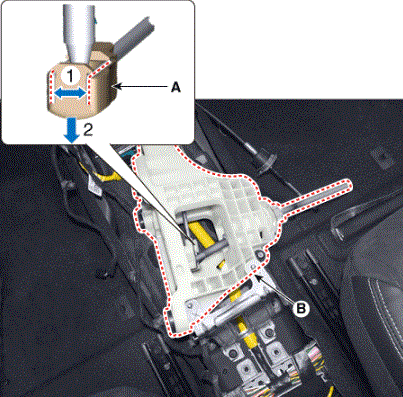

  11. Disconnect the shift cable (A) and shift lever (B) by spreading the cable end's "U" shaped clips towards both sides.
    G16177199Courtesy of HYUNDAI MOTOR AMERICA

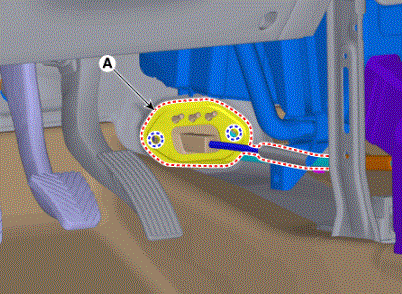

  12. Loosen the nuts and then remove the retainer (A).
    G16177200Courtesy of HYUNDAI MOTOR AMERICA

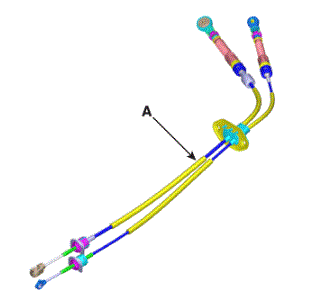

  13. Remove the control cable (A) to the interior.
    G16177201Courtesy of HYUNDAI MOTOR AMERICA
