Repair Procedures: Removal
- Turn the ignition switch OFF and then disconnect the negative (-) battery cable.CAUTION:
- When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, fuel filter, fuel tank, canister). (Refer to General Information - "LIFT POINT ")
- Loosen the front wheel nuts slightly. Raise the vehicle, and make sure it is securely supported.
- Remove the front wheel and tire. (Refer to Suspension System - "WHEEL ")
- Remove the front wheel guard. (Refer to Body - "FRONT WHEEL GUARD ")

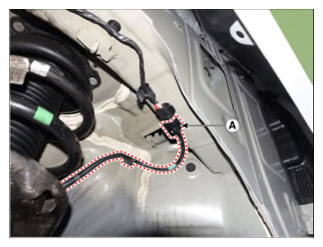

- Disconnect the front wheel speed sensor connector (A) and then remove the fixing clip.

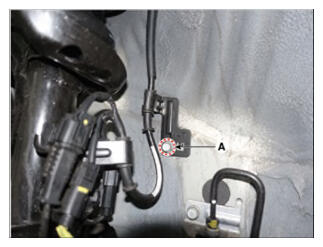

- Remove the front wheel speed sensor cable bracket bolt (A).
Tightening torque:
6.8 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.0 - 7.9 lb-ft)

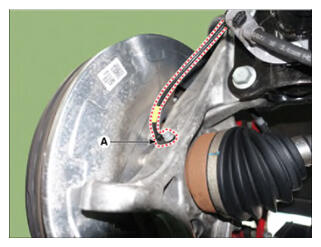

- Loosen the bolt (A) and then disconnect the front wheel speed sensor.
Tightening torque:
7.8 - 11.7 N.m (0.7 - 1.1 kgf.m, 5.7 - 8.6 lb-ft)
