Repair Procedures: Replacement

  1. Remove the rear wheel hub bearing assembly. (Refer to Driveshaft and Axle - "REAR HUB - CARRIER REPAIR PROCEDURES ")

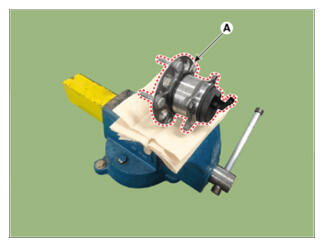

  2. Fix the rear hub bearing assembly (A) on the vise.
    NOTE:
    • When fixing on the vise, use a cloth not to be damaged the hub bearing assembly.
    • Be careful if excessive force for fixing on the vise may damage the hub bearing assembly.
    G16187119Courtesy of HYUNDAI MOTOR AMERICA

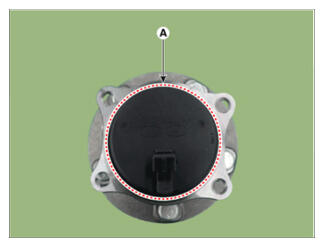

  3. Check the direction of the sensor cap (A).
    G16187120Courtesy of HYUNDAI MOTOR AMERICA

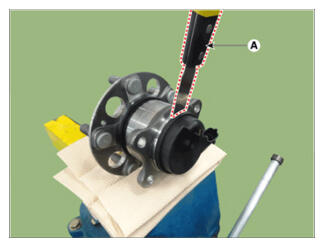

  4. Remove the sensor cap by hammering on a gap between sensor cap and hub bearing assembly using a scraper (A).
    G16187121Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:

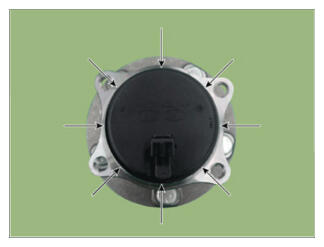

    • In order to widen the gap little by little, hammering around the bearing cap 10-20 times.
      G16187122Courtesy of HYUNDAI MOTOR AMERICA

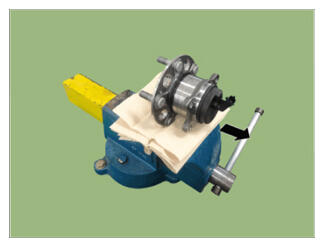

    • When removing the sensor cap, remove it in a straight direction not to damage the tone wheel or encoder.
    G16187123Courtesy of HYUNDAI MOTOR AMERICA

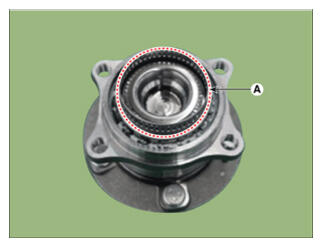

  5. Check if distorted or damaged the tone wheel or encoder (A).
    G16187124Courtesy of HYUNDAI MOTOR AMERICA

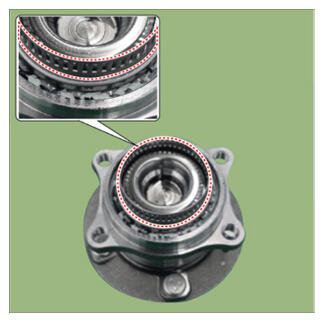

    NOTE:
    • Check if damaged the tone wheel or encoder after removing the sensor cap and replace the hub bearing if it was deformed.
    • If the tone wheel is deformed, it may trigger the MIL ON or other problems.
    G16187125Courtesy of HYUNDAI MOTOR AMERICA
  6. Position the sensor cap to the same direction of sensor cap connector (A) as you checked before removing.
    G16187126Courtesy of HYUNDAI MOTOR AMERICA

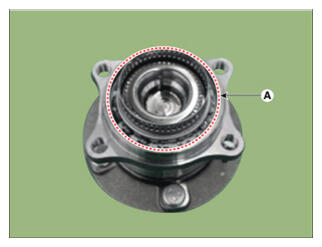

    NOTE:
    • Before installing the sensor cap, do not let any foreign material and contaminant into the hub bearing (A) assembly.
    G16187127Courtesy of HYUNDAI MOTOR AMERICA

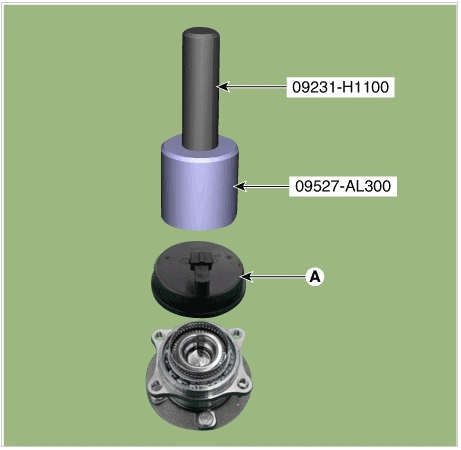

  7. Install the sensor cap (A) with the special service tool (09527-AL300).
    G16187128Courtesy of HYUNDAI MOTOR AMERICA

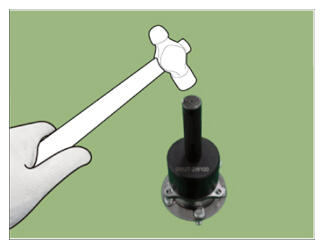

    NOTE:
    • Hammer until there is no gap between the SST and hub bearing assembly and install the sensor cap.
      G16187129Courtesy of HYUNDAI MOTOR AMERICA

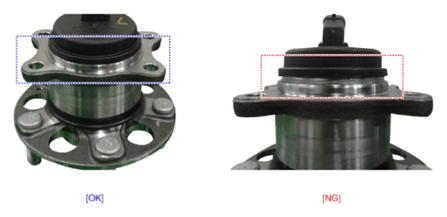

    • Be careful not to tilt to one side when installing the sensor cap as it may damage the tone wheel or encoder.
    • When sensor cap installation, hammering it until the gap disappears between the sensor cap and hub bearing assembly.
    G16187130Courtesy of HYUNDAI MOTOR AMERICA
  8. Install the rear wheel hub bearing assembly. (Refer to Driveshaft and Axle - "REAR HUB - CARRIER REPAIR PROCEDURES ")
