Charging System: Alternator

Item Specification
Nominal output 13.5V, 150A
Speed in use 0 - 18, 000 RPM
Pin 3 pin (C, L, FR)
Pulley type OAP
Voltage regulator IC Regulator built in type
Regulator Setting Voltage 14.15 - 14.95V [25°C (77°F)]

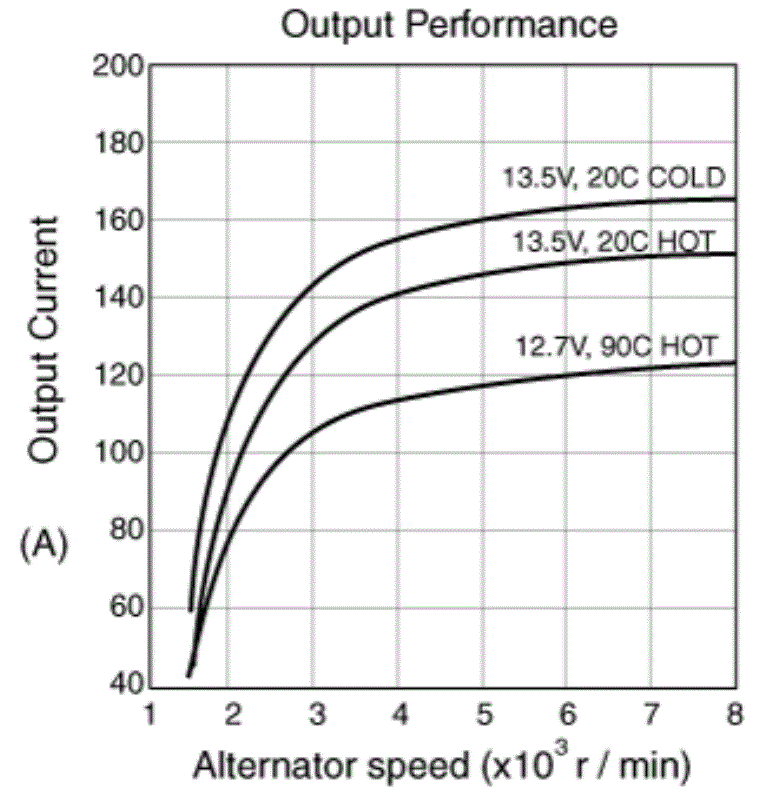

G16185862Courtesy of HYUNDAI MOTOR AMERICA
