Accelerator Position Sensor (APS): Specifications

Items Specification
APS 1 APS 2
C.T 0.7 - 0.8 0.33 - 0.43
W.O.T 3.98 - 4.22 1.93 - 2.17

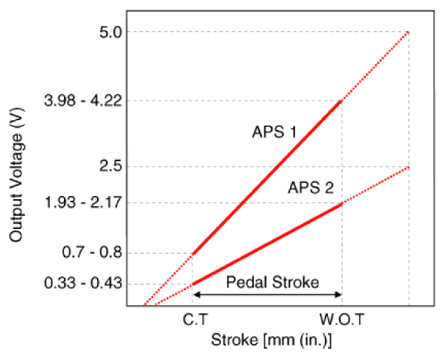

G14793865Courtesy of HYUNDAI MOTOR AMERICA
