Repair Procedures: Removal

CAUTION:

Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "LIFT AND SUPPORT POINTS ")

Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the front drive shaft assembly.[Right side]
(Refer to Driveshaft and Axle - "FRONT DRIVESHAFT ")

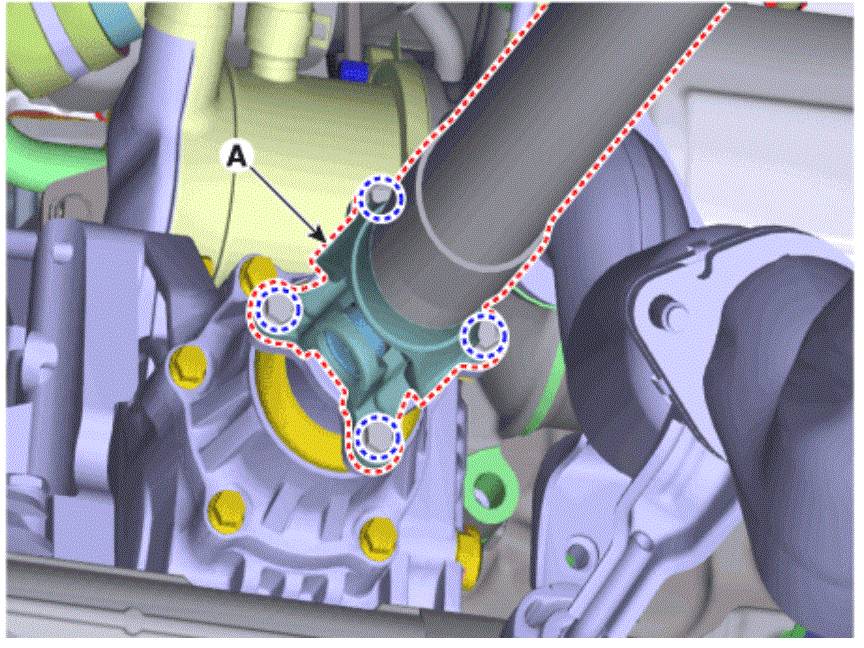

Remove the front propeller shaft assembly (A) from the transfer assembly.
Tightening torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Remove the transfer case assembly.

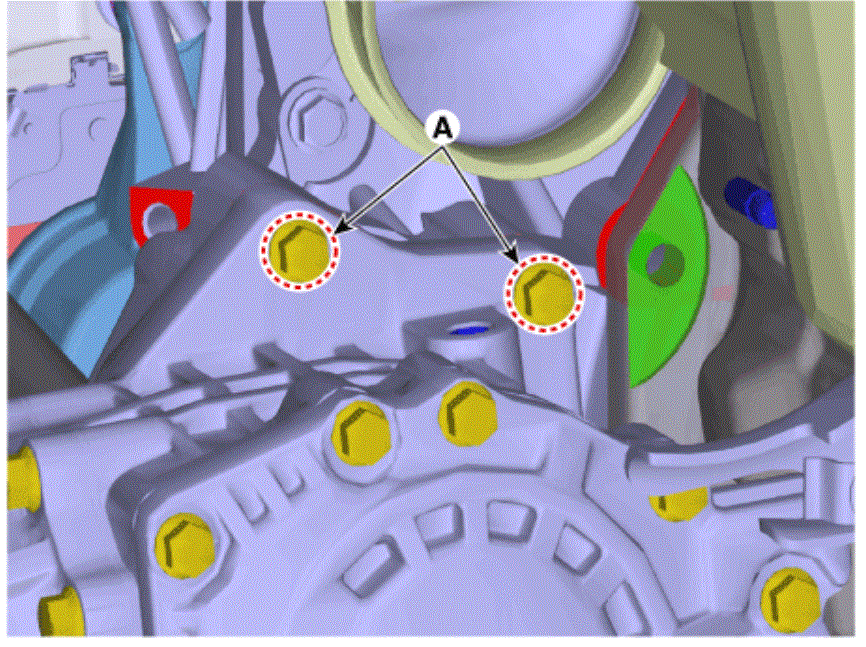

Loosen the transfer assembly upper mounting bolts (A).

Tightening torque:

60.8 - 65.7 N.m (6.2 - 6.7 kgf.m, 44.8 - 48.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Loosen the lower mounting bolts (A) and then removing the transfer case assembly (B).

Tightening torque:

60.8 - 65.7 N.m (6.2 - 6.7 kgf.m, 44.8 - 48.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
