Components Location

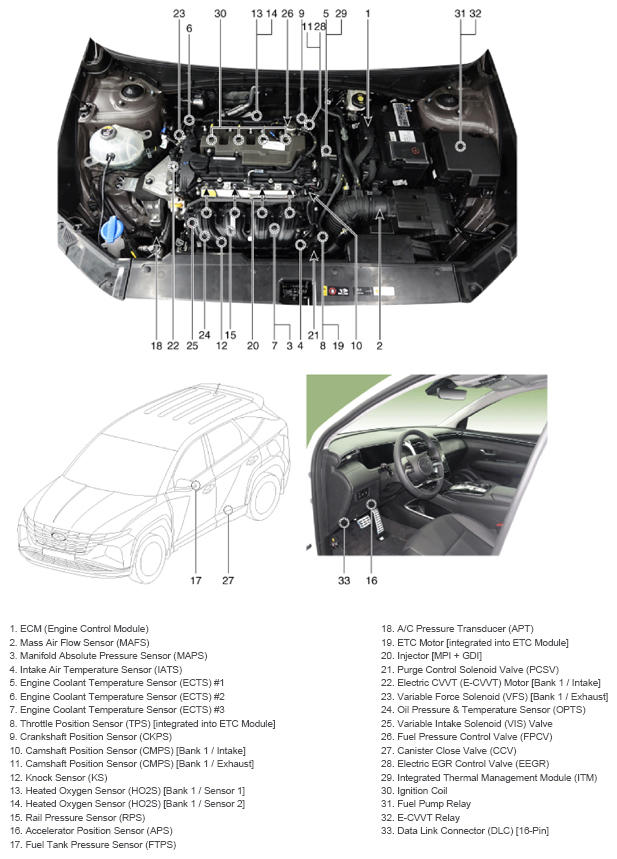

G14676777Courtesy of HYUNDAI MOTOR AMERICA

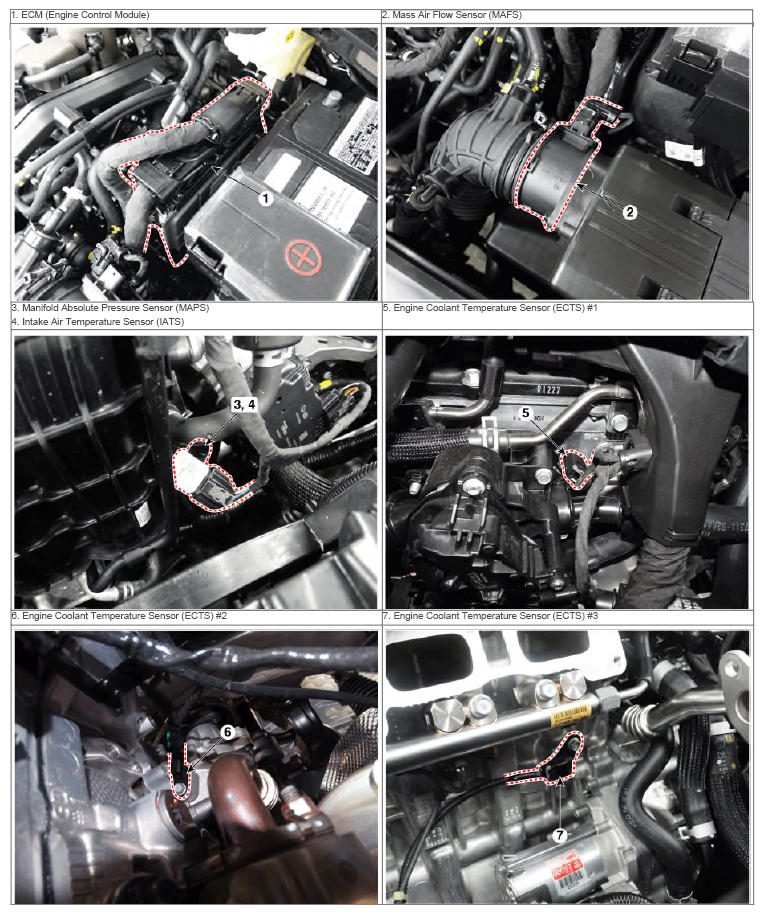

G14676778Courtesy of HYUNDAI MOTOR AMERICA

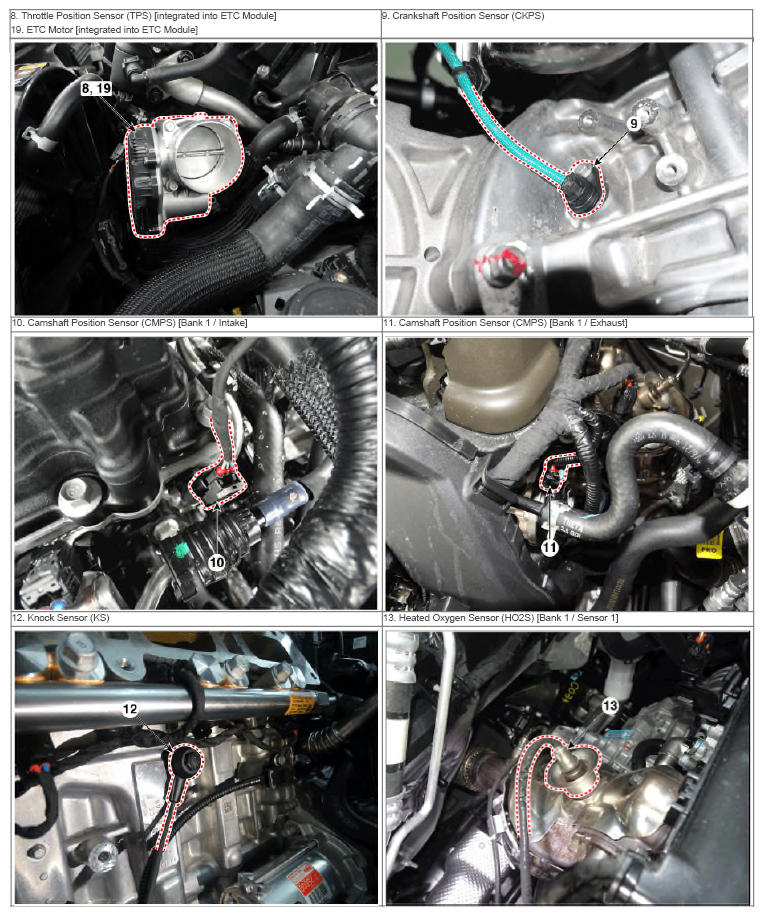

G14676779Courtesy of HYUNDAI MOTOR AMERICA

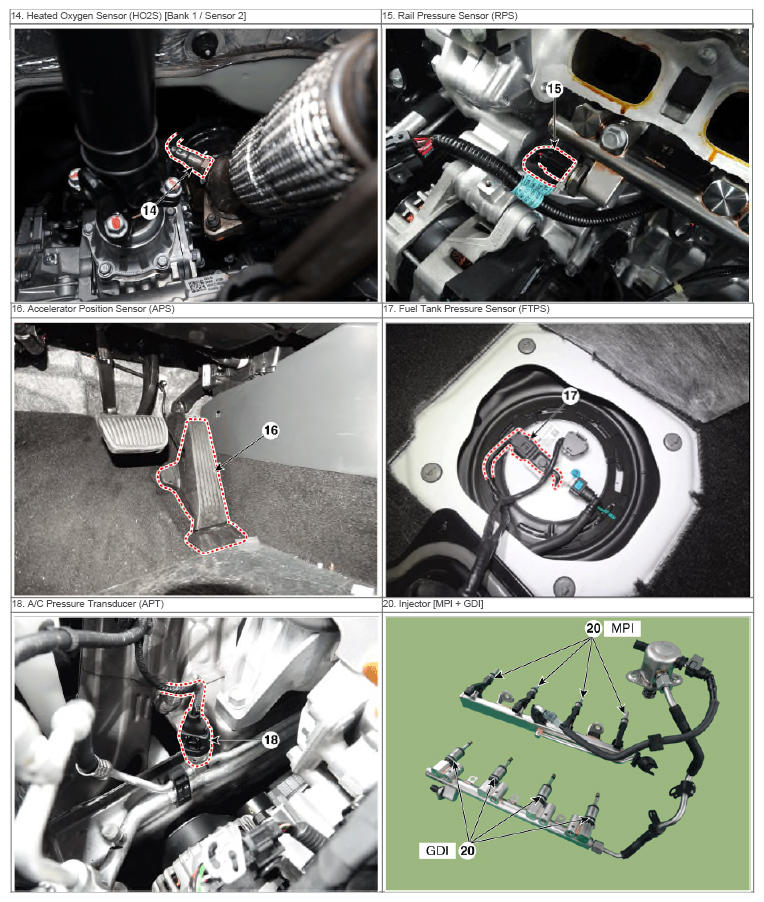

G14676780Courtesy of HYUNDAI MOTOR AMERICA

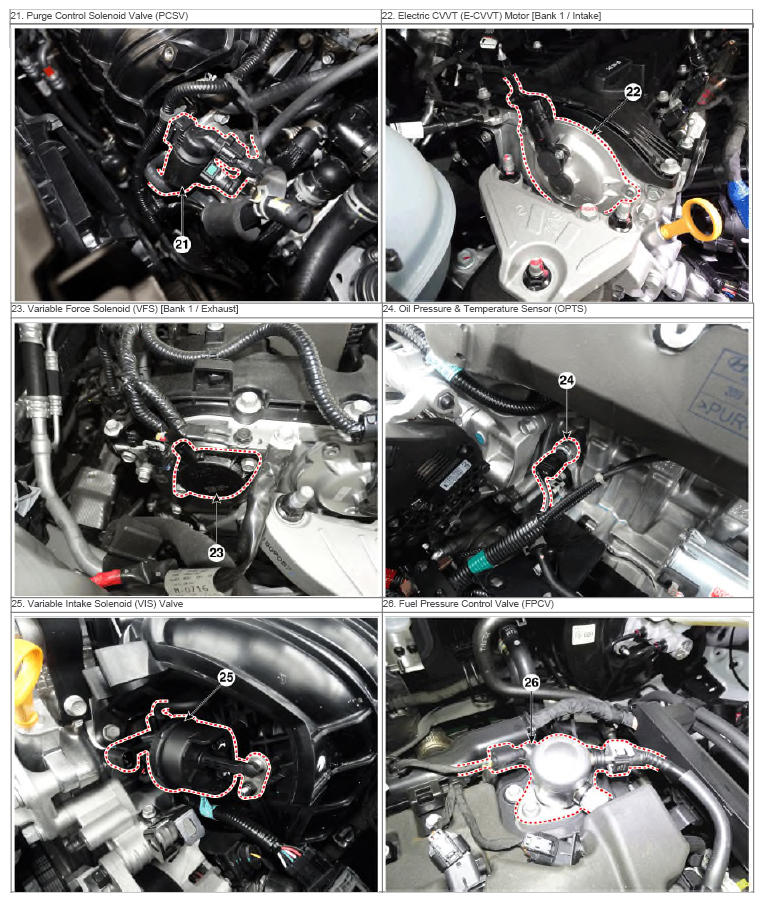

G14676781Courtesy of HYUNDAI MOTOR AMERICA

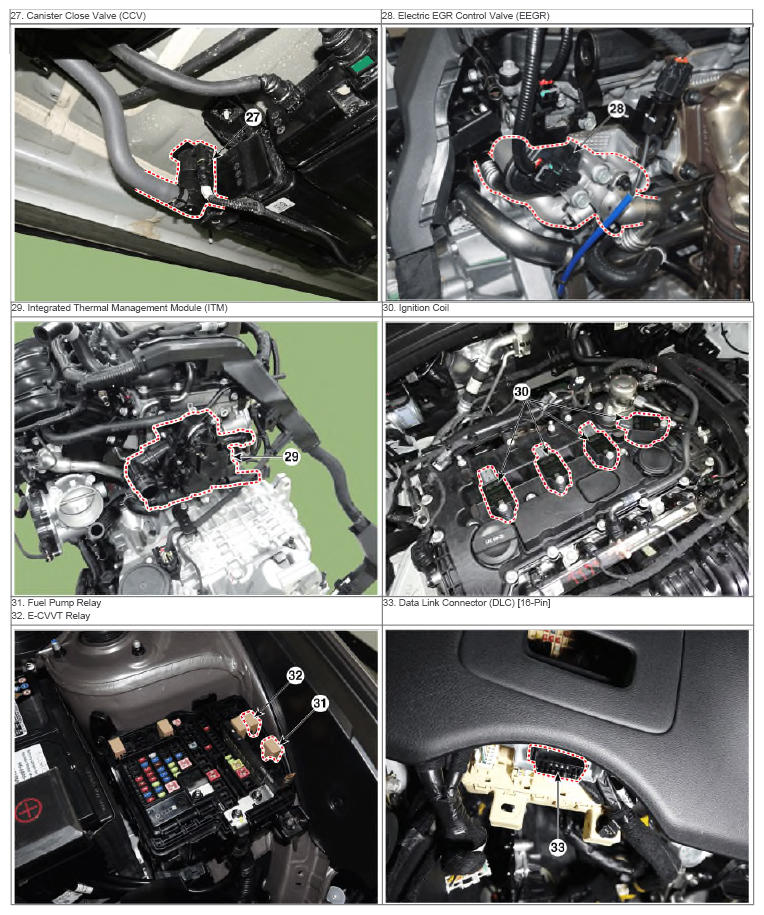

G14676782Courtesy of HYUNDAI MOTOR AMERICA
