Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the resonator and the air intake hose.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

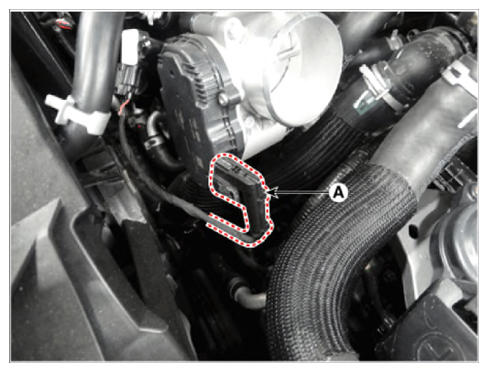

  3. Disconnect the ETC module connector (A).
    Fig 1: ETC Module Components Location
    G14676806Courtesy of HYUNDAI MOTOR AMERICA

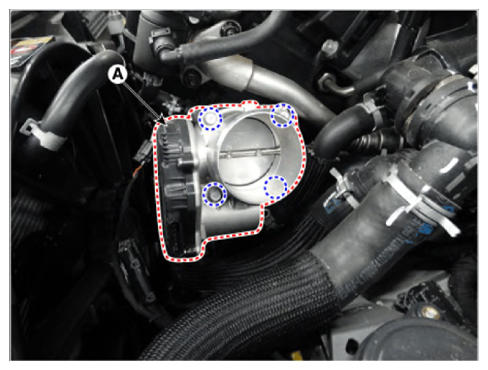

  4. Remove the ETC Module (A) after loosening the mounting bolt.

    Electronic throttle body Installation bolt:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G14676807Courtesy of HYUNDAI MOTOR AMERICA
