Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery (-) terminal.
- Remove the rear seat assembly.
(Refer to Body (Interior and Exterior) - "REAR SEAT ASSEMBLY ")

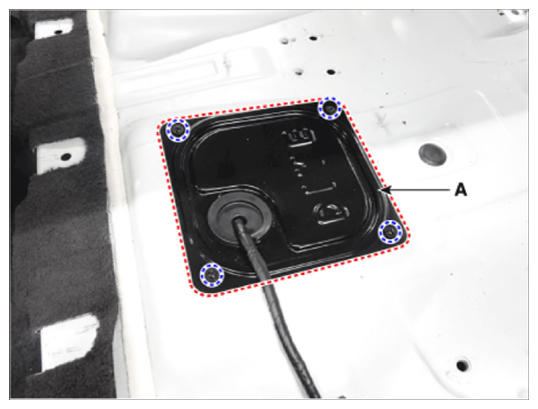

- Remove the fuel pump service cover (A) after loosening the screw.

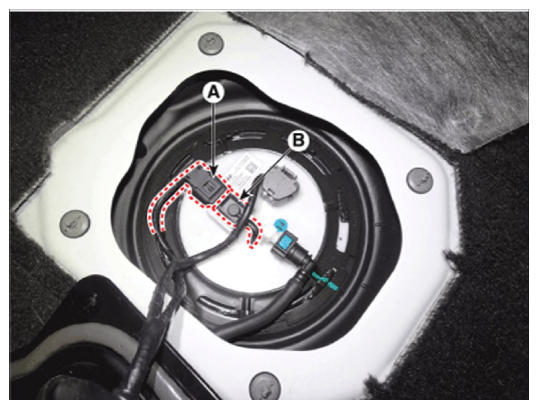

- Disconnect the fuel tank pressure sensor connector (A).
- Remove the fuel tank pressure sensor (B) after releasing the hooks vertically.
