Injector
>>
Schematic Diagrams
>>
Circuit Diagram
>>
MPI Injector
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

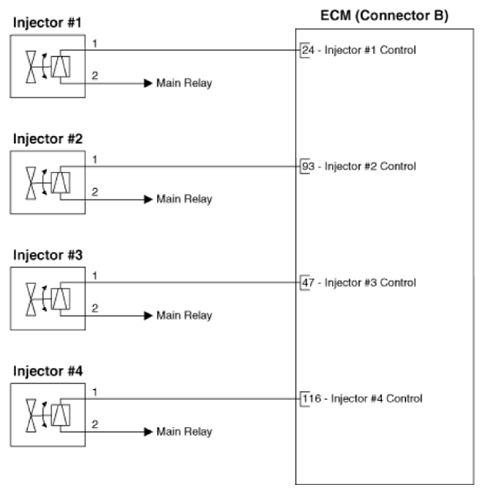

MPI Injector
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
