Repair Procedures: Removal
- Disconnect the battery negative (-) terminal.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
- Drain the engine oil.
(Refer to Engine Mechanical System - "ENGINE OIL ")
- Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

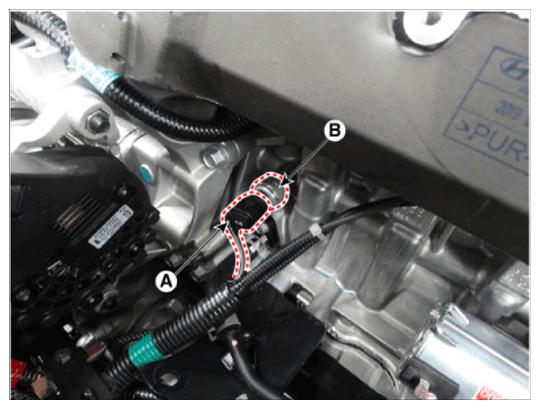

- Disconnect the connector (A) and then remove the sensor (B).
Tightening torque:
35.3 - 38.2 N.m (3.6 - 3.9 kgf.m, 26.0 - 28.2 lb-ft)
