Repair Procedures: Installation

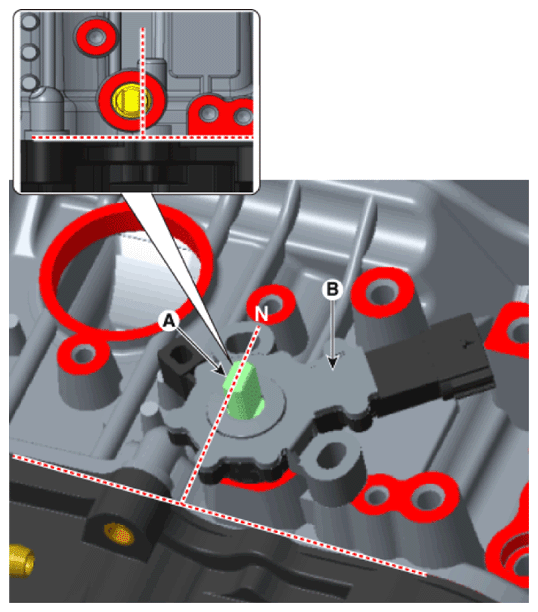

- Check that the shaft (A) is in the "N" position.
- Install the position sensor (B).

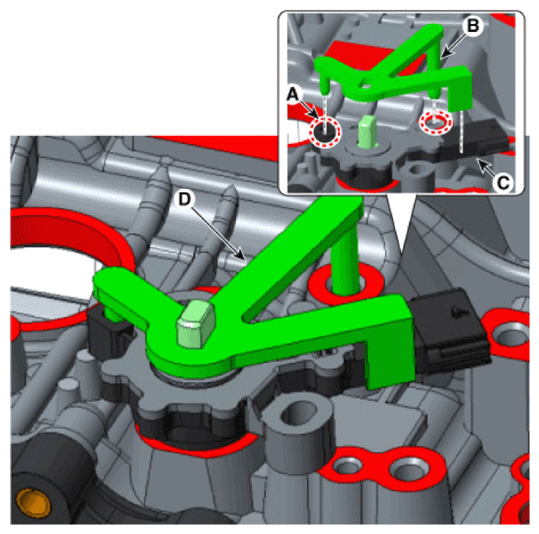

- Install the position sensor "N" fixing SST (No.:09459 - 4G100) (D) in the sensor (A), case pin (B) and anti-rotation guide (C).

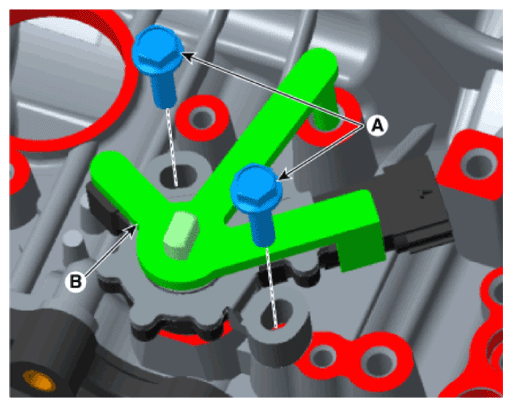

- Tighten the bolts (A) in the position sensor and then removing the "N" fixing SST (No.:09459 - 4G100) (B).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 28.9 - 33.9 lb-ft)

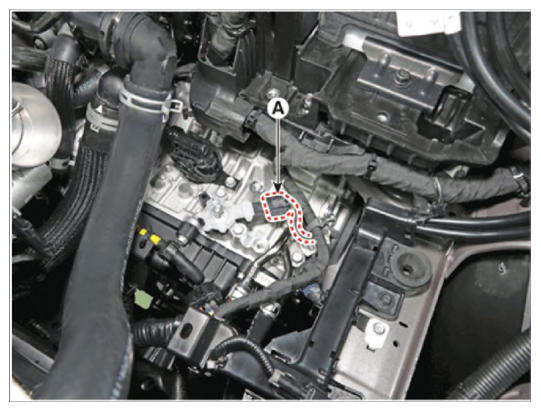

- Connect the position sensor connector (A).
- Install the electronic shift actuator (A).
Tightening torque:
20.6 - 26.5 N.m (2.1 - 2.7 kgf.m, 15.2 - 19.5 lb-ft)

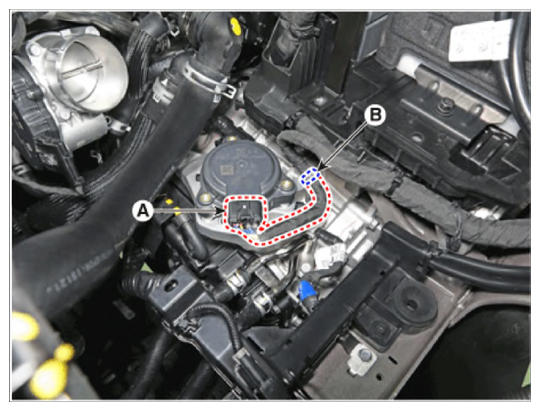

- Connect the electronic shift actuator connector (A) and wiring clip (B).
- Install the air duct and the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Check that operating surely at each range of the position sensor corresponding to each position of electric shift button.
