Repair Procedures: Installation
- To install, reverse the removal procedure.

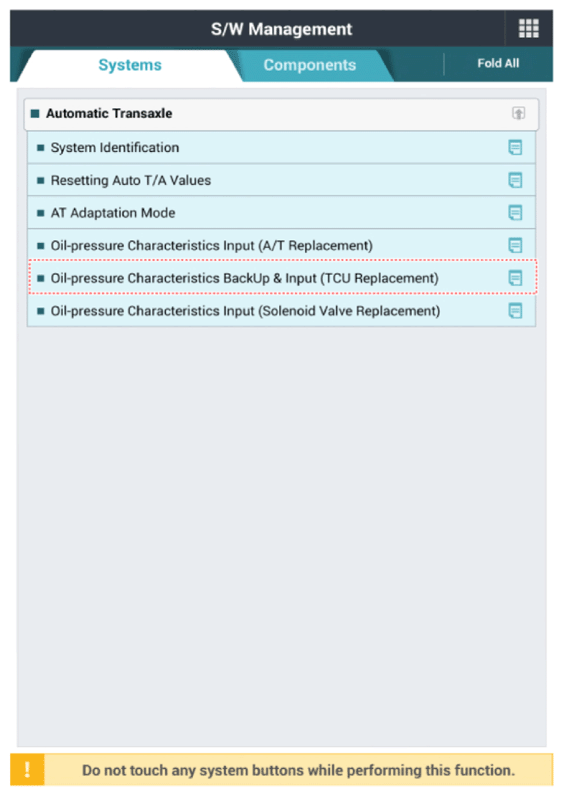

- Perform the oil pressure characteristics input procedure using the diagnostic tool when replacing with a new TCM.
NOTE:
Perform TCM learning after replacing the transaxle to prevent slow transaxle response, jerky acceleration and jerky startup. (Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ") Perform the procedures related in the ECM after replacing the TCM. (Refer to Engine Control / Fuel System - "ENGINE CONTROL MODULE (ECM)
")
