Repair Procedures: Removal

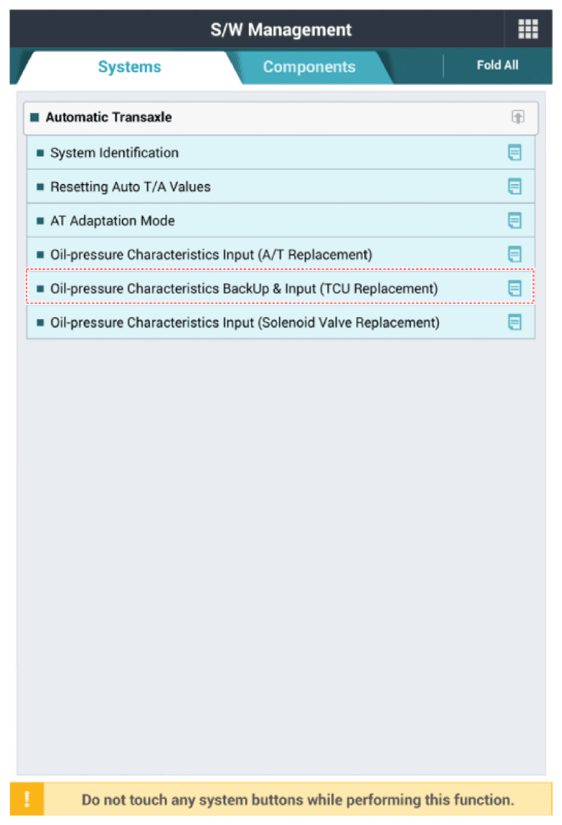

  1. Perform the oil pressure characteristics backup procedure using the diagnostic tool when replacing with a new TCM.
    G14677265Courtesy of HYUNDAI MOTOR AMERICA
  2. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  3. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  4. Remove the TCM.

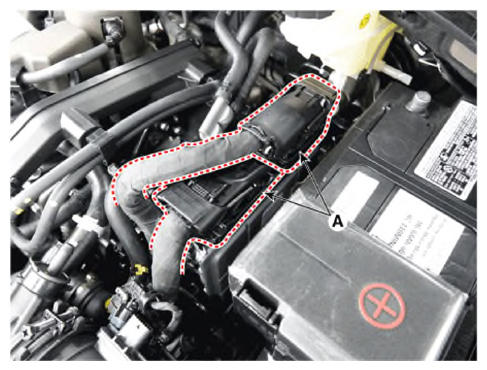

    1. Disconnect the TCM connector (A).
      G14677266Courtesy of HYUNDAI MOTOR AMERICA

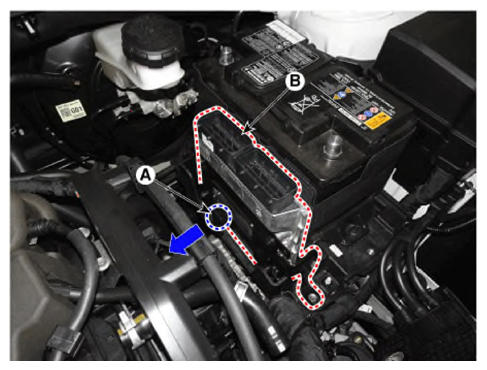

    2. Remove the ECM (A) after releasing the fixing hooks.
      G14677267Courtesy of HYUNDAI MOTOR AMERICA

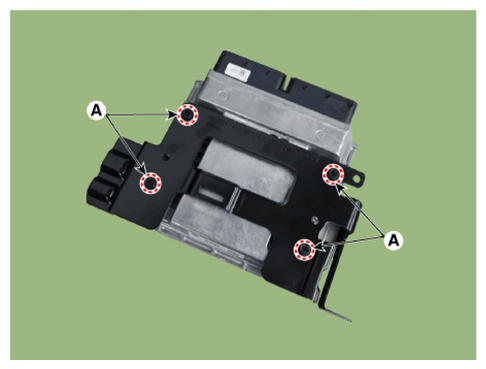

    3. Remove the TCM after loosening the mounting nuts (A).

      Tightening Torque:

      6.9 - 8.8 N.m (0.7 - 0.9 kgf.m, 5.1 - 6.5 lb-ft)

    G14677268Courtesy of HYUNDAI MOTOR AMERICA
