High Pressure Fuel Line

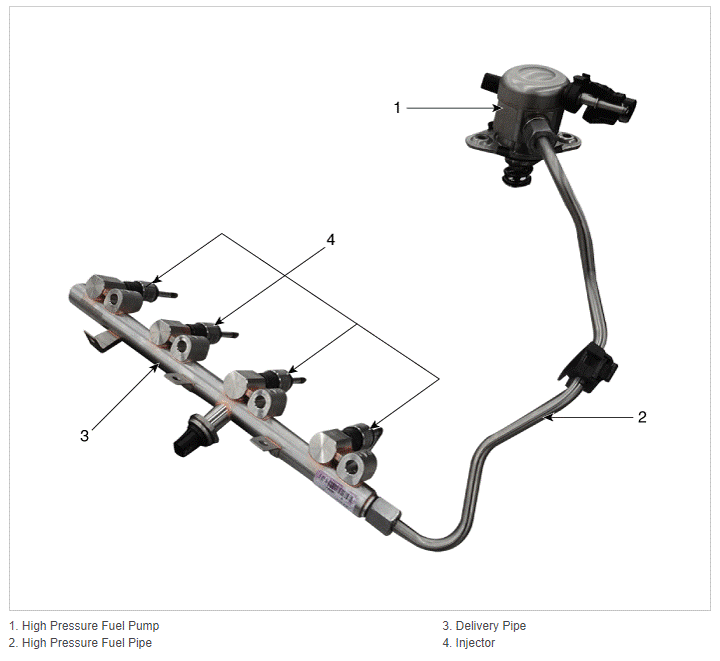

G16172613Courtesy of HYUNDAI MOTOR AMERICA
WARNING:
  • In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don't do any repair work right after engine stops.
