Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

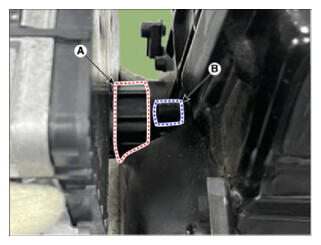

Make sure the TCM pin part (A), and E-module part (B) fit when installing.

Courtesy of HYUNDAI MOTOR AMERICA

When reinstalling the TCM, must be replaced the TCM connector mounting bolt (A) with new one and apply the oil to the O-ring (B) before tightening it.

Courtesy of HYUNDAI MOTOR AMERICA

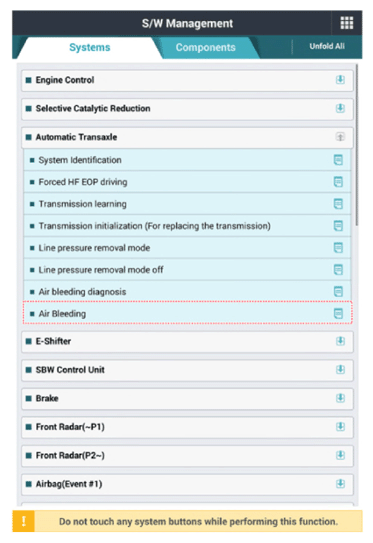

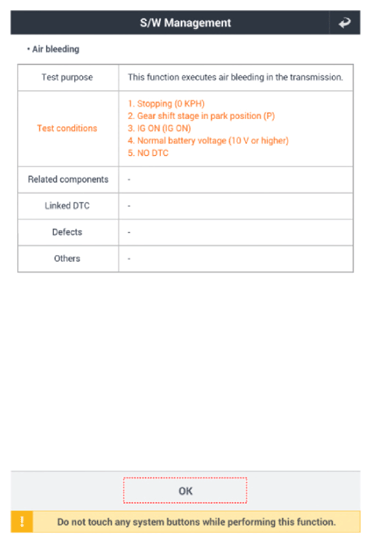

Perform the air bleeding procedure by using the diagnostic tool.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

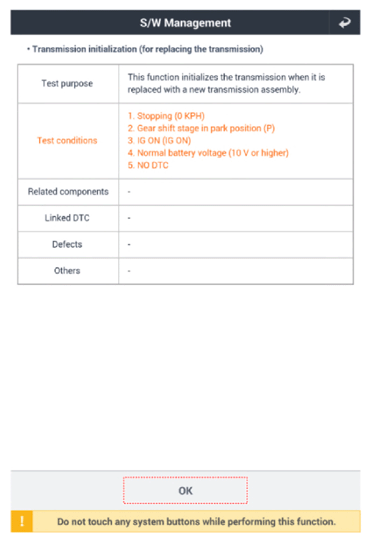

Perform the factory mode exit procedure by using the diagnostic tool if replaced transmission with a new one.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

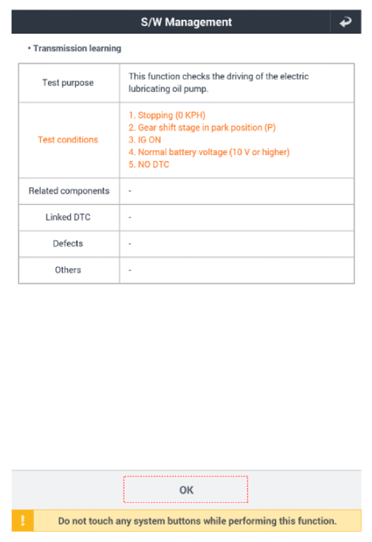

Perform the clutch touch point learning procedure using the diagnostic tool after replacing TCM

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Perform the touch point curve learning procedures.
- Perform to learn a touch point curve.
1. Drive the accelerator pedal at a low angle after starting from a stop condition P → D, P → R (Drive while accelerating pedal from 10% to 30% and gradually increasing)
2. Drive the accelerator pedal at a middle angle after starting from a stop condition P → D, P → R (Drive while accelerating pedal from 30% to 50% and gradually increasing)
  Information
  - An accelerator pedal angle doesn't need to be driven exact but needs to drive while gradually increasing the angle to ensure a good learning procedure.
3. Repeat the above procedure. (Test time 2 min)
Re-perform the touch point curve learning procedures after DCT learning procedure, when there is delayed acceleration or shift shock occurs. (Maximum 5 time)
