Repair Procedures: Removal

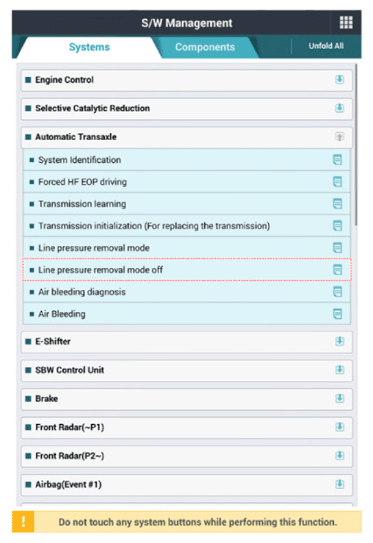

Perform the line pressure removal mode off procedure by using the diagnostic tool.

Courtesy of HYUNDAI MOTOR AMERICA
Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ASSEMBLY ")

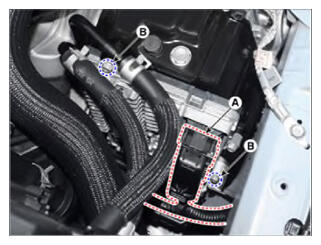

Disconnect the TCM connector (A) and then loosen the TCM upper mounting bolts (B).
Tightening torque:

9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

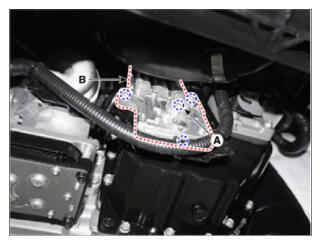

Loosen the TCM connector bolt (A) and the TCM lower mounting bolts and then remove the TCM (B).

Tightening torque:

TCM lower bolt: 9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)

TCM connector bolt (A): 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.7 - 7.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Be careful not to damage the TCM pin part (A) when removing the TCM assembly.

Courtesy of HYUNDAI MOTOR AMERICA
