Repair Procedures: Installation
- Check that the shift lever is placed in the "N" position.

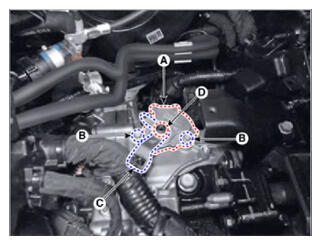

- Install the position switch (A) and then lightly tighten the bolts (B).
- Align the hole in the position switch and the neutral fixed hole of the manual lever and then install the manual lever (C).
- Tighten the manual lever mounting nut (D) with the specified torque.
Tightening torque:
(A) 17.7 - 24.5 N.m (1.8 - 2.5 kgf.m, 13.0 - 18.1 lb-ft)

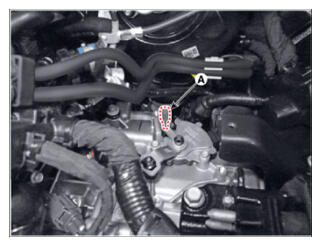

- Install the neutral fixed pin (SST.: 09480-A3800) (A) to the neutral fixed hole.

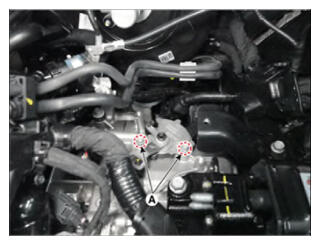

- Tighten the position switch mounting bolts (A) with the specified torque.
Tightening torque:
(A) 9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)

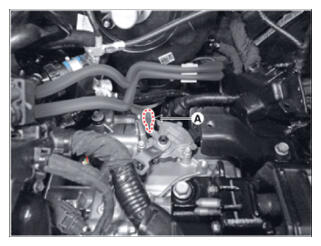

- Remove the position switch neutral fixed pin (SST No.: 09480-A3800) (A).

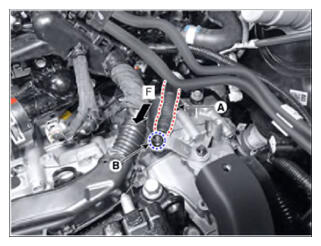

- Push shift cable (A) lightly to "F" direction shown to eliminate free play of shift cable.
Tighten the nut (B) with the specified torque.
Tightening torque:
9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb-ft)

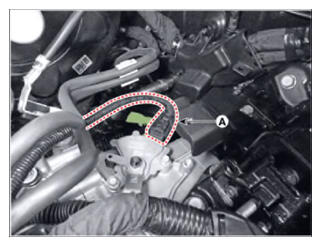

- Connect the position switch connector (A).
- Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY and BATTERY TRAY ")
- Install the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ASSEMBLY ")
CAUTION:- Check that operating surely at each range of the position switch corresponding to each position of shift lever.
