Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the steering column upper & lower shroud.
  4. Remove the ignition switch and disconnecting the Key Warning/immobilizer connector.

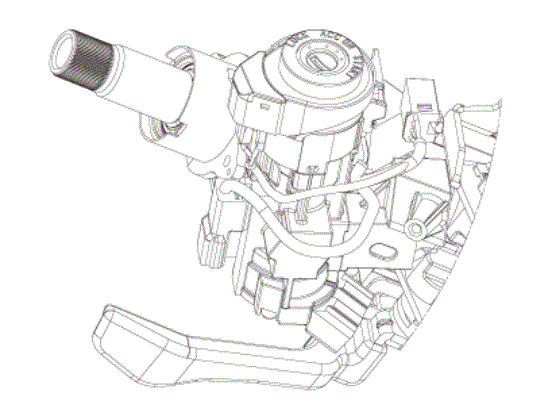

    G16179141Courtesy of HYUNDAI MOTOR AMERICA
  5. If it is necessary to remove the key lock cylinder (A), remove the key lock cylinder (A) after pushing lock pin (B) with key ACC.

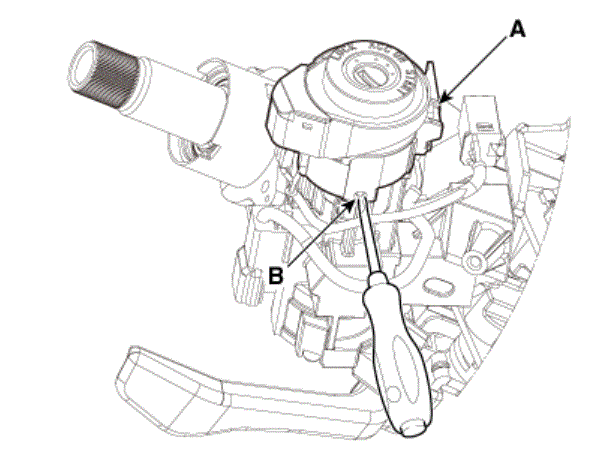

    G16179142Courtesy of HYUNDAI MOTOR AMERICA

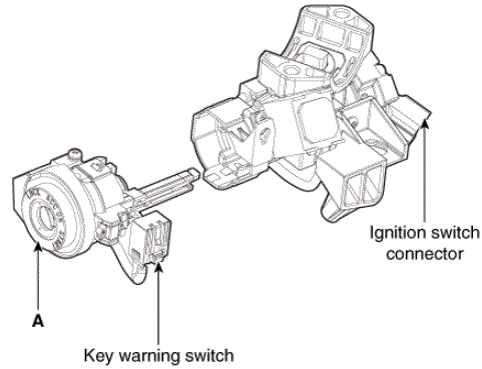

    G16179143Courtesy of HYUNDAI MOTOR AMERICA
  6. Installation is the reverse of removal procedure.
