Repair Procedures: Removal
- Disconnect the battery (-) terminal.
- Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ASSEMBLY ")

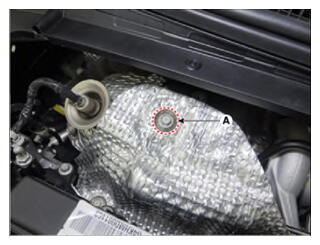

- Remove the exhaust manifold heat protector installation blot (A).

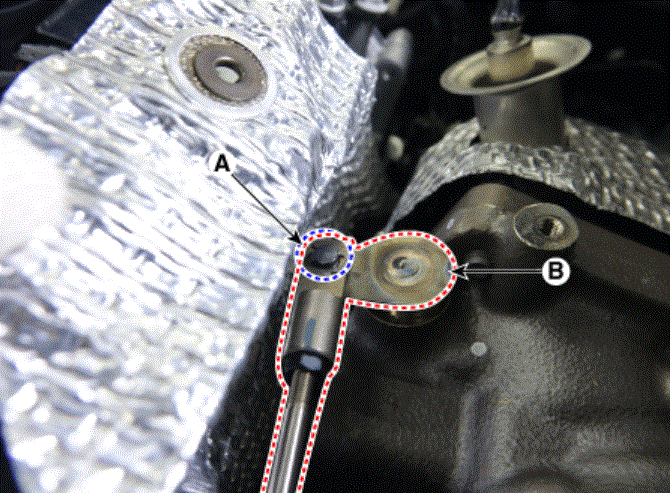

- Remove the shaft link assembly (B) after removing the C-ring (A).

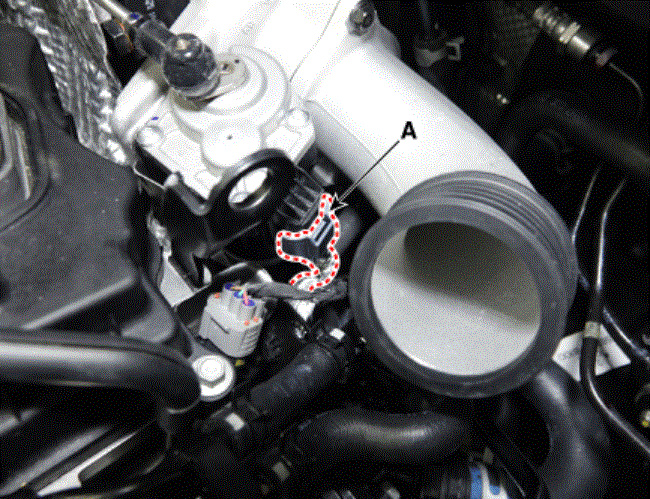

- Disconnect the EWGA connector (A).

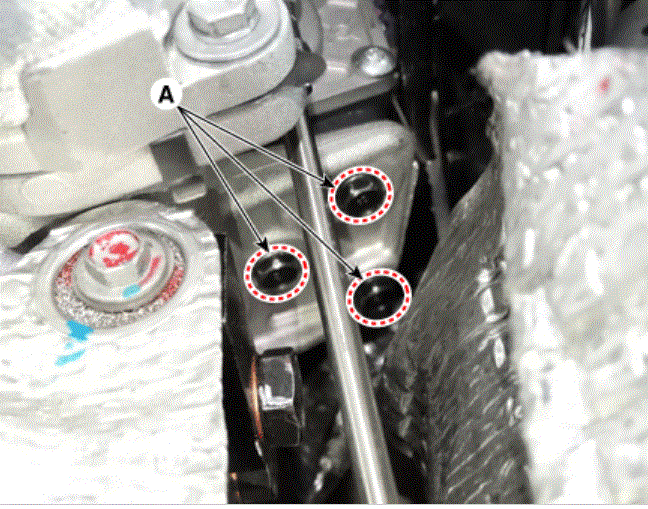

- Remove the EWGA after removing the bolts (A).
