Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.

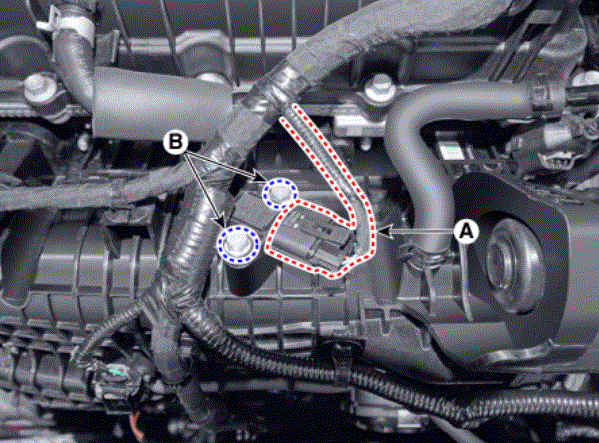

  2. Disconnect the MAPS & IATS connector (A).
  3. Remove the installation bolt (B), and then remove the sensor from the surge tank.

    Tightening Torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G16176853Courtesy of HYUNDAI MOTOR AMERICA
