Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.

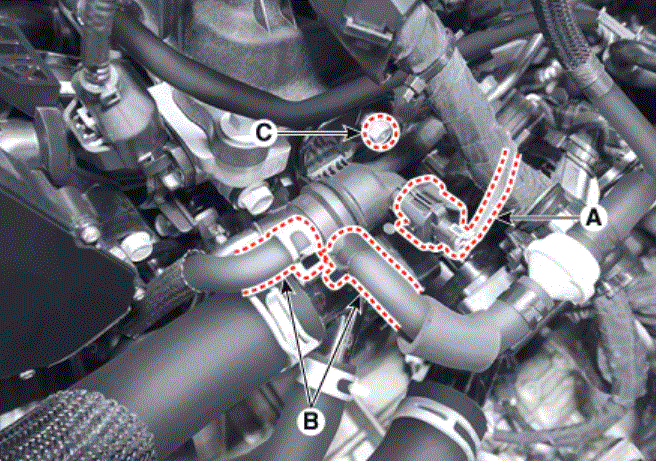

  2. Disconnect the purge control solenoid valve connector (A).
  3. Disconnect the vapor hoses (B) from the purge control solenoid valve.
  4. Remove the PCSV, after loosening the mounting bolt (C).

    Tightening Torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G16176935Courtesy of HYUNDAI MOTOR AMERICA
