Diagnostic Flowchart

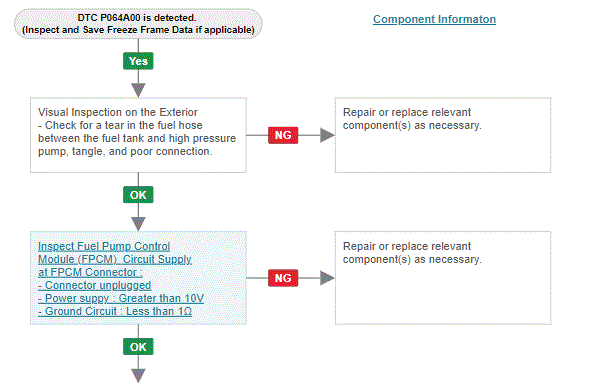

Fig 1: 1 Of 3
G16180375Courtesy of HYUNDAI MOTOR AMERICA

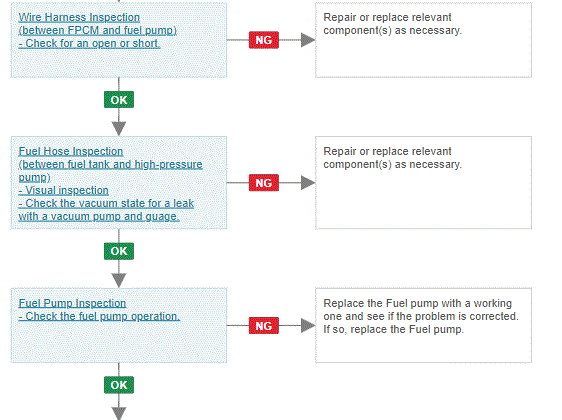

Fig 2: 2 Of 3
G00666502Courtesy of HYUNDAI MOTOR AMERICA
Fig 3: 3 Of 3
G00666503Courtesy of HYUNDAI MOTOR AMERICA
