Repair Procedures: Removal

  1. Turn OFF ignition switch and disconnect the negative (-) battery cable.

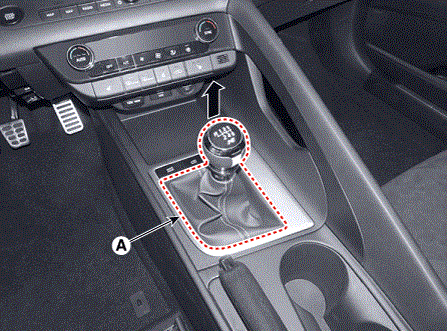

  2. Remove the shift lever knob & boots (A).
    G16177186Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

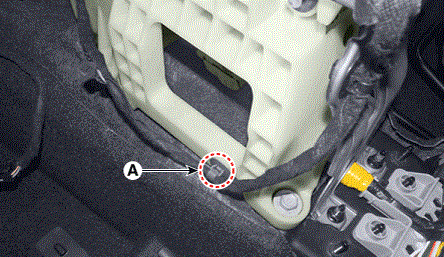

  4. Disconnect the wiring clip (A).
    G16177187Courtesy of HYUNDAI MOTOR AMERICA

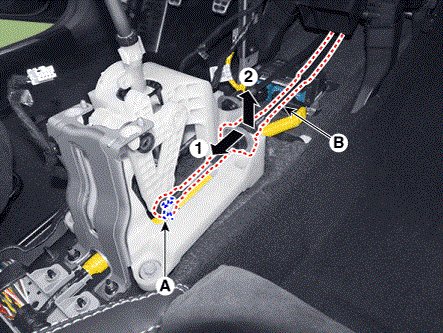

  5. Remove the snap pin (A) and then Disconnect the select cable (B).
    G16177188Courtesy of HYUNDAI MOTOR AMERICA

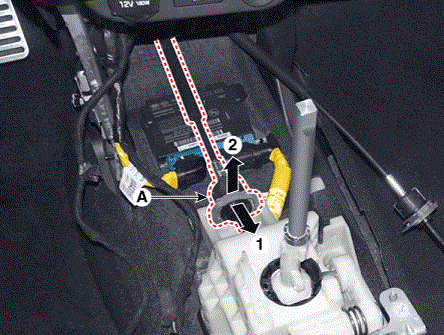

  6. Disconnect the shift cable socket (A).
    G16177189Courtesy of HYUNDAI MOTOR AMERICA

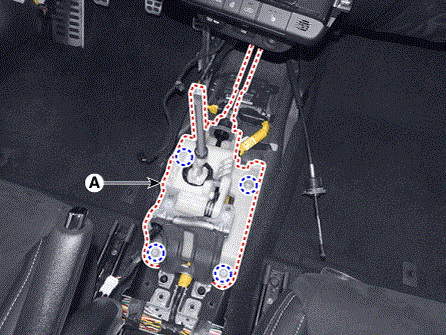

  7. Loosen the bolts and then disconnect the shift lever assembly (A).

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

    G16177190Courtesy of HYUNDAI MOTOR AMERICA

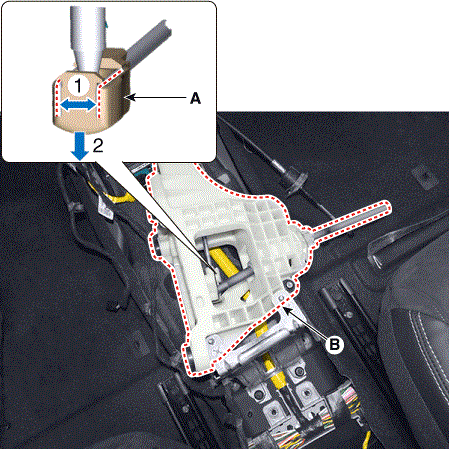

  8. Disconnect the shift cable (A) and shift lever (B) by spreading the cable end's "U" shaped clips towards both sides.
    G16177191Courtesy of HYUNDAI MOTOR AMERICA
