Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

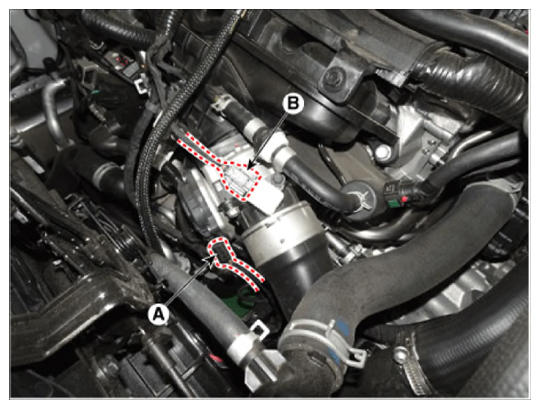

  2. Disconnect the ETC module connector (A).
  3. Disconnect BPS connector (B).
    G14710998Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the Intercooler outlet hose. (Refer to Engine Mechanical - "INTERCOOLER ")

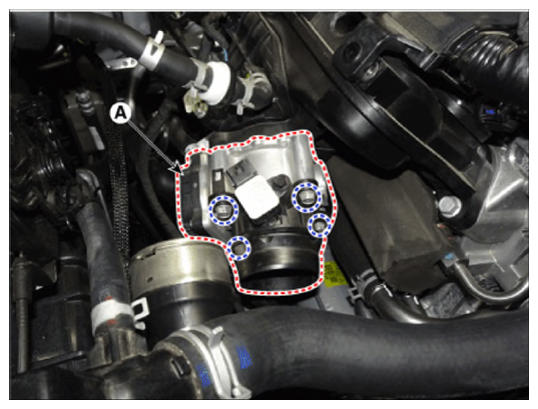

  5. Remove the ETC module (A) after loosening the mounting bolts.

    Tightening Torque:

    9.8-11.8 N.m (1.0-1.2 kgf.m, 7.2-8.7 lb-ft)

    G14710999Courtesy of HYUNDAI MOTOR AMERICA
