Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the battery. (Refer to Engine Electrical System - "BATTERY ")

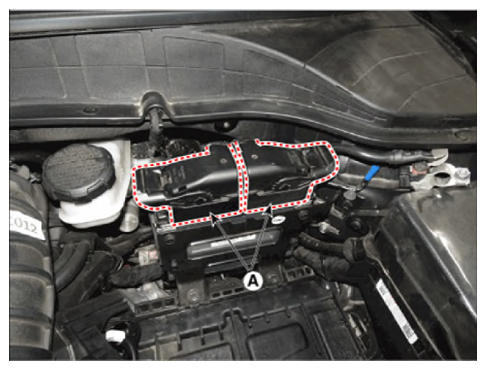

- Disconnect the ECM Connector (A).

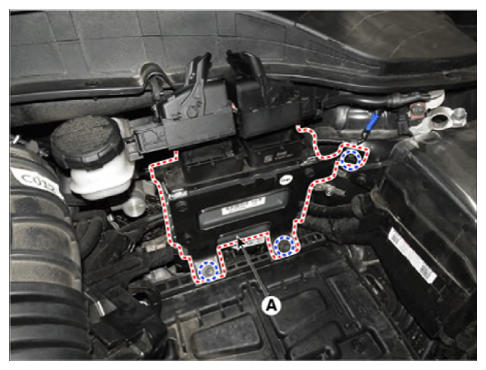

- Remove the ECM bracket (A) after loosening the mounting bolts.
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

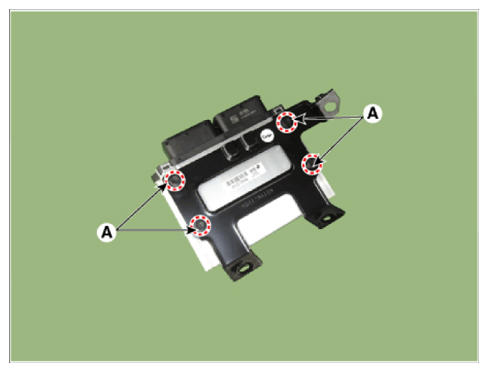

- Remove the ECM after loosening the mounting bolts (A).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
