Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the air cleaner assembly. (Refer to Engine Mechanical System - "AIR CLEANER ASSEMBLY ")

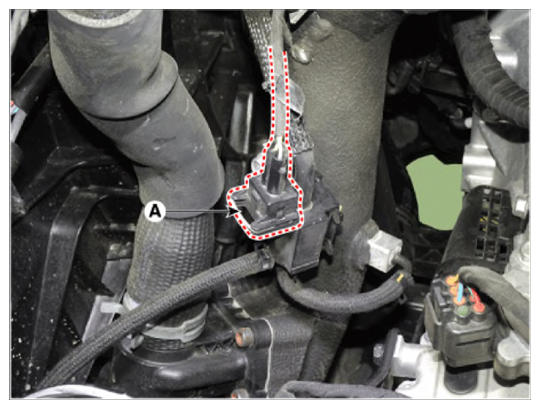

- Disconnect the RCV control solenoid valve connector (A).

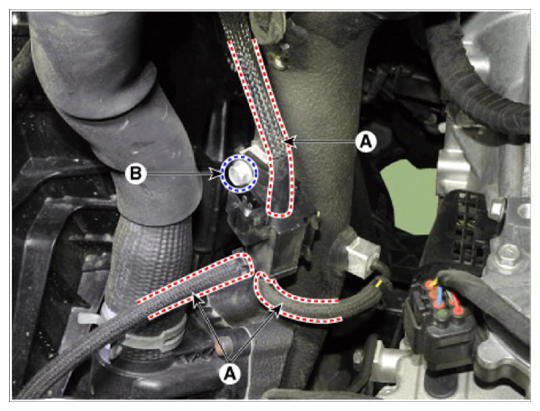

- Remove the vacuum hose (A).
- Remove the RCV control solenoid valve, after loosen mounting bolt (B).
Tightening Torque:
9.8-11.8 N.m (1.0-1.2 kgf.m, 7.2-8.7 lb-ft)
