Repair Procedures: Removal
- Release the residual pressure in fuel line. (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the intake manifold. (Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

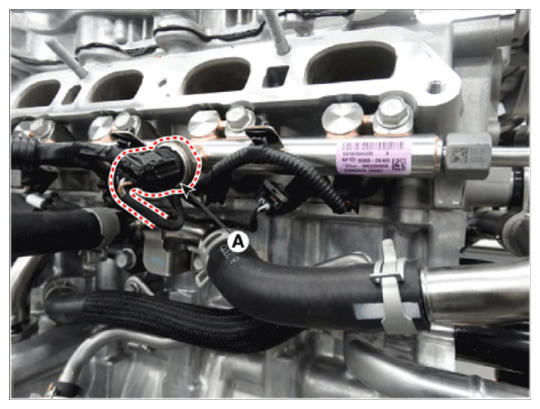

- Disconnect the rail pressure sensor connector and then remove the sensor (A) from the delivery pipe.
Tightening torque:
29.4 - 34.3 N.m (3.0 - 3.5 kgf.m, 10.8 - 15.9 lb-ft)
