Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the canister assembly. (Refer to Emission Control System - "CANISTER ")

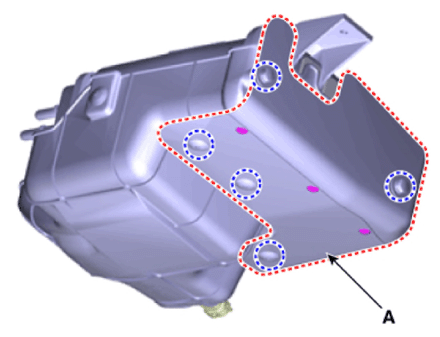

  3. Remove the canister protector (A) after loosening the mounting bolt & fastener.
    G14711116Courtesy of HYUNDAI MOTOR AMERICA

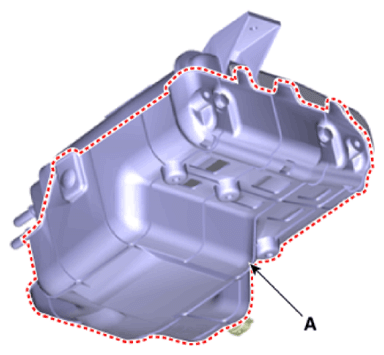

  4. Remove the canister cover (A) after loosening the mounting bolt & fastener.
    G14711117Courtesy of HYUNDAI MOTOR AMERICA

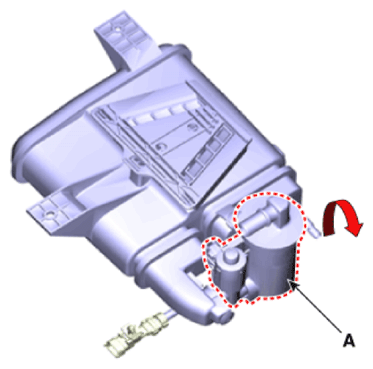

  5. Remove the clip, and then separate the fuel tank air filter (A) from the canister after rotating it in the direction of the arrow in the figure.
    G14711118Courtesy of HYUNDAI MOTOR AMERICA

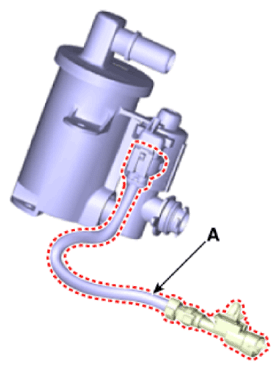

  6. Remove the canister close valve extension wiring (A).
    G14711119Courtesy of HYUNDAI MOTOR AMERICA

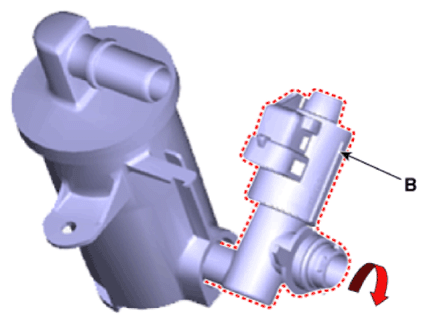

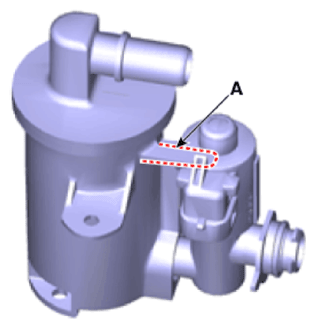

  7. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the figure.
    G14711120Courtesy of HYUNDAI MOTOR AMERICA
    G14711121Courtesy of HYUNDAI MOTOR AMERICA
