Smart Key Code Saving

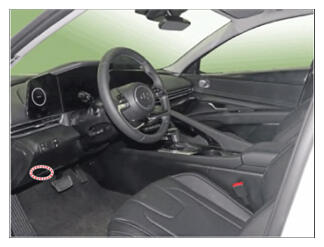

  1. Connect the DLC cable of Diagnostic tool to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on Diagnostic tool.
    G16188314Courtesy of HYUNDAI MOTOR AMERICA

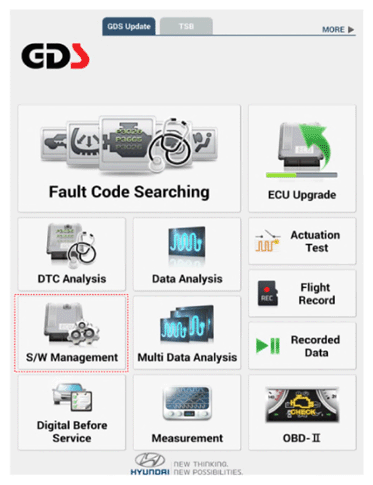

  2. Select the 'S/W Management' and 'Car model'.
    G16188315Courtesy of HYUNDAI MOTOR AMERICA

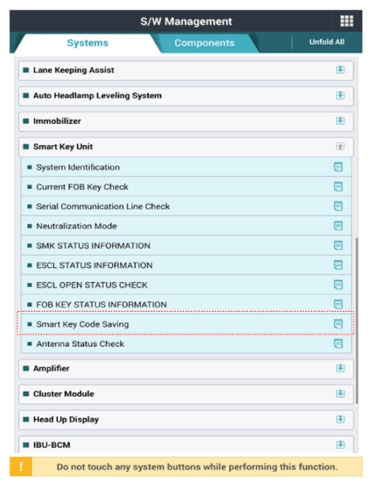

  3. Select the 'Smart Key Unit' and 'Smart Key Code Saving'.
    G16188316Courtesy of HYUNDAI MOTOR AMERICA
  4. Follow the instructions on the screen.
    G16188317Courtesy of HYUNDAI MOTOR AMERICA
