Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.

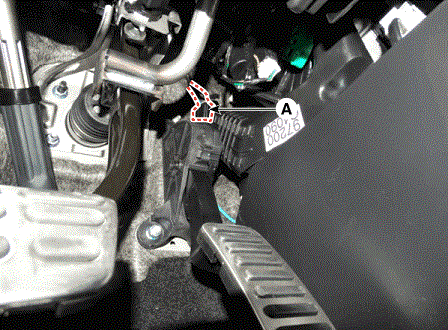

  2. Disconnect the accelerator position sensor connector (A).
    G16186176Courtesy of HYUNDAI MOTOR AMERICA

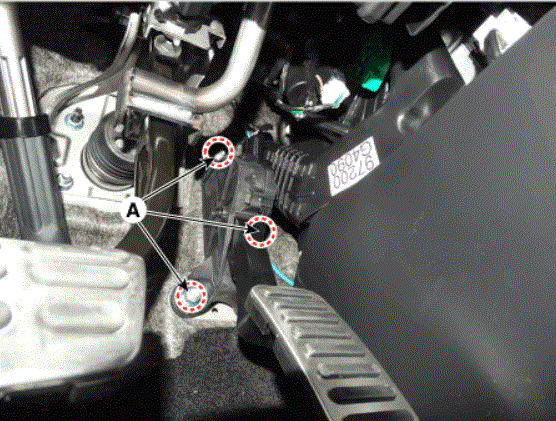

  3. Remove the installation nuts (A) and then remove the accelerator pedal module.
G16186177Courtesy of HYUNDAI MOTOR AMERICA
