Bank 1/Intake
- Disconnect the battery (-) terminal.
- Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER REPAIR PROCEDURES ")

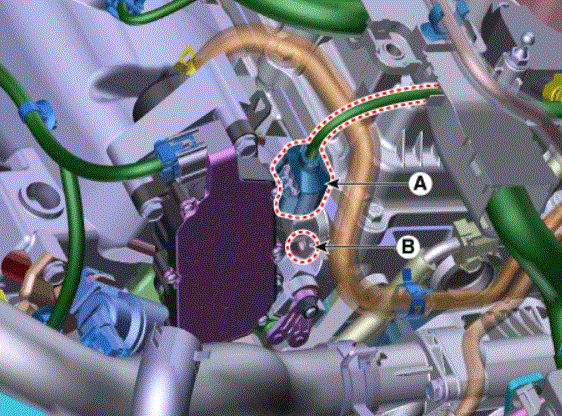

- Disconnect the camshaft position sensor connector (A).
- Remove the installation bolt (B), and then remove the sensor.
