Repair Procedures: Removal
- Disconnect the battery (-) terminal.
- Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER REPAIR PROCEDURES ")
- Remove the battery.
(Refer to Engine Electrical System - "BATTERY REPAIR PROCEDURES ")

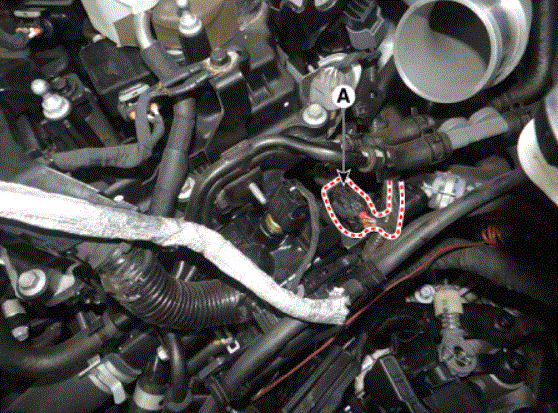

- Disconnect the crankshaft position sensor connector (A).
- Lift the vehicle.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
- Remove the electric water pump.
(Refer to Engine Mechanical System - "ELECTRIC WATER PUMP (EWP) REPAIR PROCEDURES ")

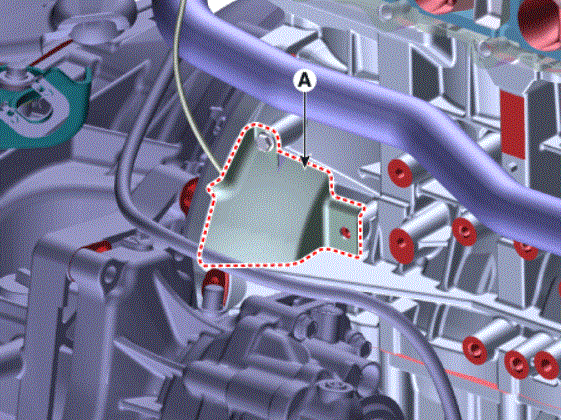

- Remove the protector (A) after loosening the mounting bolts.
Crankshaft position sensor protector mounting bolt (M6):
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

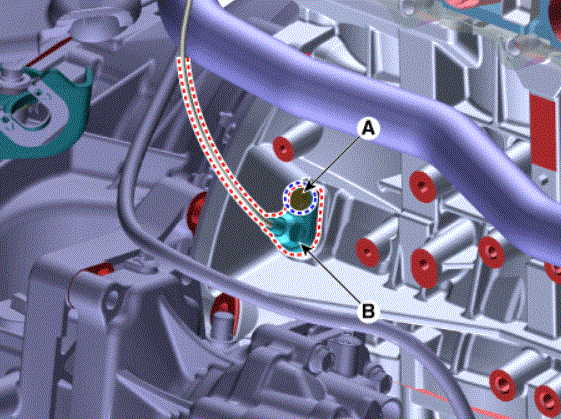

- Remove the crankshaft position sensor (B) after loosening the mounting bolt (A).
Crankshaft position sensor mounting bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
