Repair Procedures: Removal
- Disconnect the battery (-) terminal.
- Remove the fuel tank.
(Refer to Fuel Delivery System - "FUEL TANK ")

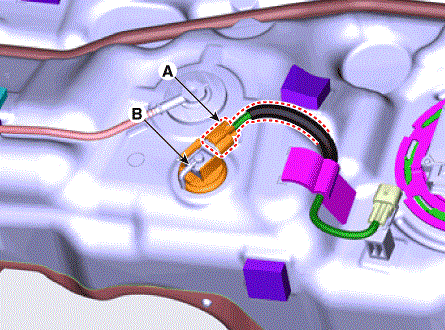

- Disconnect the fuel tank pressure sensor connector (A).
- Release the hook, and then remove the fuel tank pressure sensor (FTPS) (B) vertically from the fuel tank.
