Repair Procedures: Removal
- Disconnect the battery (-) terminal.
- Remove the air duct.
(Refer to Engine Mechanical System - "AIR CLEANER REPAIR PROCEDURES ")

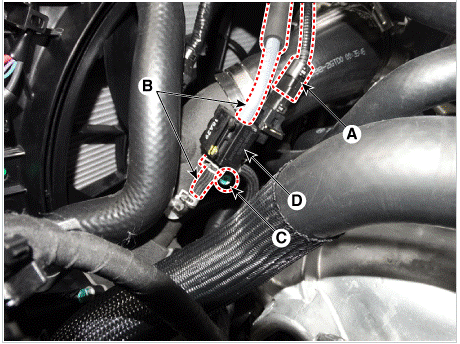

- Disconnect the RCV control solenoid valve connector (A) and vapor hose (B).
- Remove the RCV control solenoid valve (D), after loosening the mounting bolt (C).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
