Repair Procedures: Installation
- Check that the shift lever is placed in the "N" position.

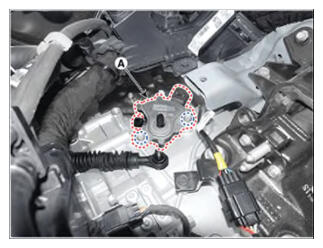

- Install the position switch (A) and then lightly tighten the position switch mounting bolts.

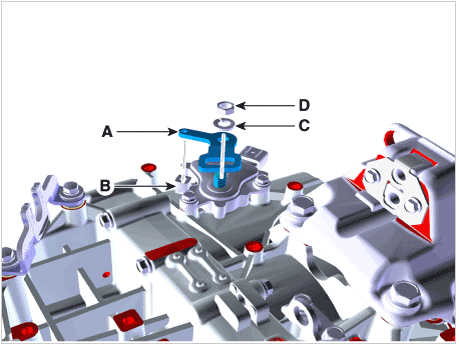

- Align the hole in the manual control lever (A) with the "N" position hole (B) of the position switch and then lightly tighten nut (D) and washer (C).

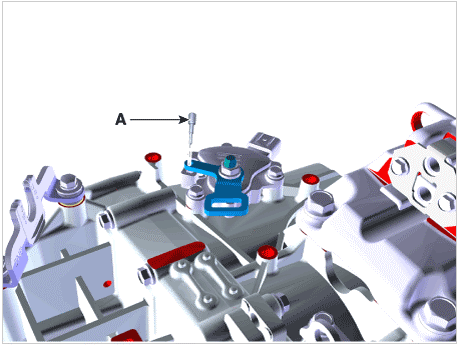

- Insert the position switch neutral fixed pin (SST No..: 09480-A3800) (A) for "N" position hole.

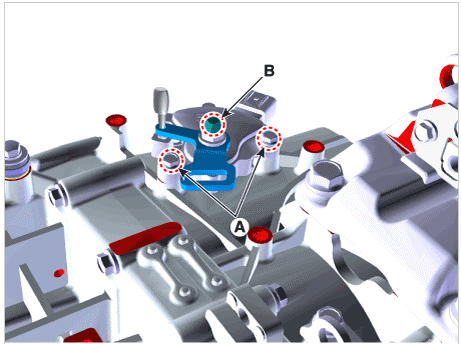

- Tighten the position switch mounting bolts (A) and manual lever mounting nut (B) with the specified torque.
Tightening torque:
- 9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)
- 17.6 - 24.5 N.m (1.8 - 2.5 kgf.m, 13.0 - 18.0 lb-ft)

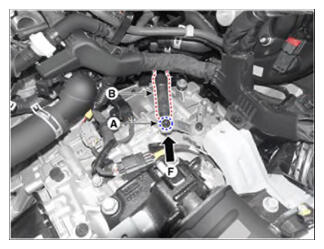

- Push shift cable (B) lightly to "F" direction shown to eliminate free play of shift cable.
Tighten the nut (A) with the specified torque.
- Remove the position switch neutral fixed pin (SST No.: 09480-A3800) (A) from the hole.

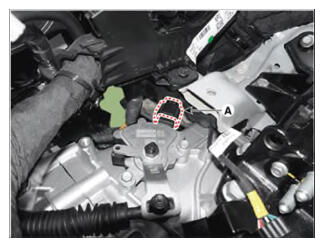

- Connect the position switch connector (A).
- Install the battery and tray.
(Refer to Engine Electrical System - "BATTERY REPAIR PROCEDURES ")
- Install the ECM.
(Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) REPAIR PROCEDURES ")
- Install the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER REPAIR PROCEDURES ")
CAUTION:- Check that operating surely at each range of the position switch corresponding to each position of shift lever.
