Repair Procedures: Removal
NOTE:
- If you replace the PCM, you must perform oil pressure characteristics back up & input (TCU Replacement). (Refer to Automatic Transaxle System - "IVT CONTROL SYSTEM - 2.0L ")
CAUTION:
- When replacing the ECM, the vehicle equipped with the immobilizer must be performed procedure as below.
[In the case of installing used ECM]
- Perform
"ECM Neutral mode" procedure with GDS.
(Refer to Body Electrical System - "Neutralizing Of ECM ")
- After finishing "ECM Neutral mode", perform
"Key teaching" procedure with GDS.
(Refer to Body Electrical System - "Key Teaching Procedure ")
[In the case of installing new ECM]
- Perform
"Key teaching" procedure with GDS.
(Refer to Body Electrical System - "Key Teaching Procedure ")
CAUTION:
- When replacing the ECM, the vehicle equipped with the smart key system (Button start) must be performed procedure as below.
[In the case of installing used ECM]
- Perform
"ECM Neutral mode" procedure with GDS.
(Refer to Body Electrical System - "SMART KEY ")
- After finishing "ECM Neutral mode", insert the key (or press the start button) and turn it to the IGN ON and OFF position.
Then the ECM learns the smart key information automatically.
[In the case of installing new ECM]
- Insert the key (or press the start button) and turn it to the IGN ON and OFF position. Then the ECM learns the smart key information automatically.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the battery.
(Refer to Engine Electrical System - "REPAIR PROCEDURES - Removal")

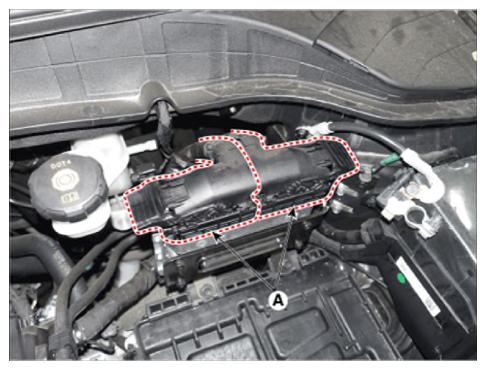

- Disconnect the ECM Connector (A).

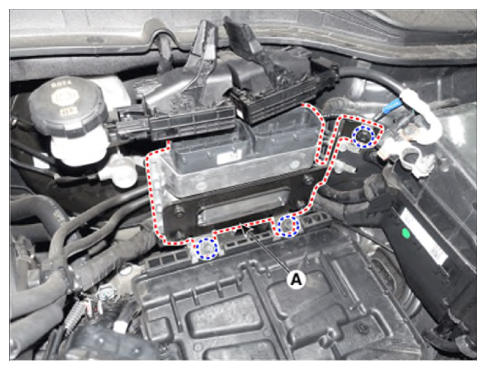

- Remove the ECM bracket (A) after loosening the mounting bolts.
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
