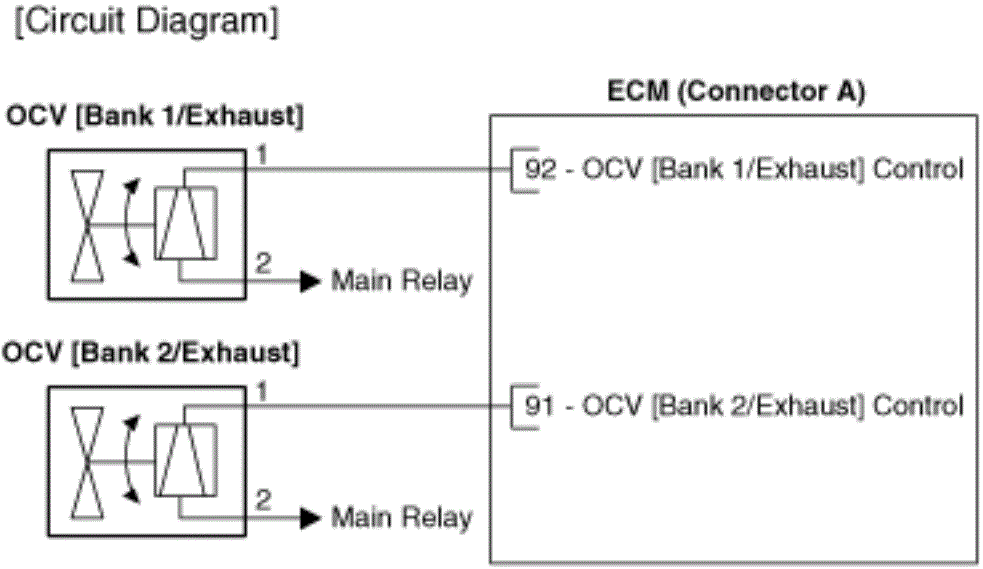

Circuit Diagram

G15477160Courtesy of HYUNDAI MOTOR AMERICA

[Connection Information

TERMINAL AND FUNCTION DESCRIPTION

Terminal Connected Function
1 ECM Connector A (92) OCV [Bank 1/Exhaust] Control
2 Main Relay Battery Power (B+)
TERMINAL AND FUNCTION DESCRIPTION

Terminal Connected Function
1 ECM Connector A (91) OCV [Bank 2/Exhaust] Control
2 Main Relay Battery Power (B+)
