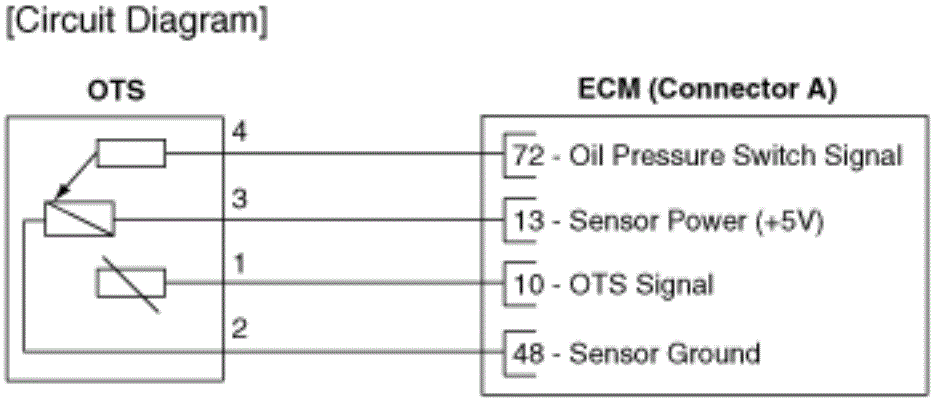

Circuit Diagram
 Courtesy of HYUNDAI MOTOR AMERICA
|
TERMINAL AND FUNCTION DESCRIPTION
| Terminal |
Connected |
Function |
| 1 |
ECM Connector A (10) |
OTS Signal |
| 2 |
ECM Connector A (48) |
Sensor Ground |
| 3 |
ECM Connector A (13) |
Senior Power (+5V) |
| 4 |
ECM Connector A (72) |
Oil Pressure Switch Signal |
