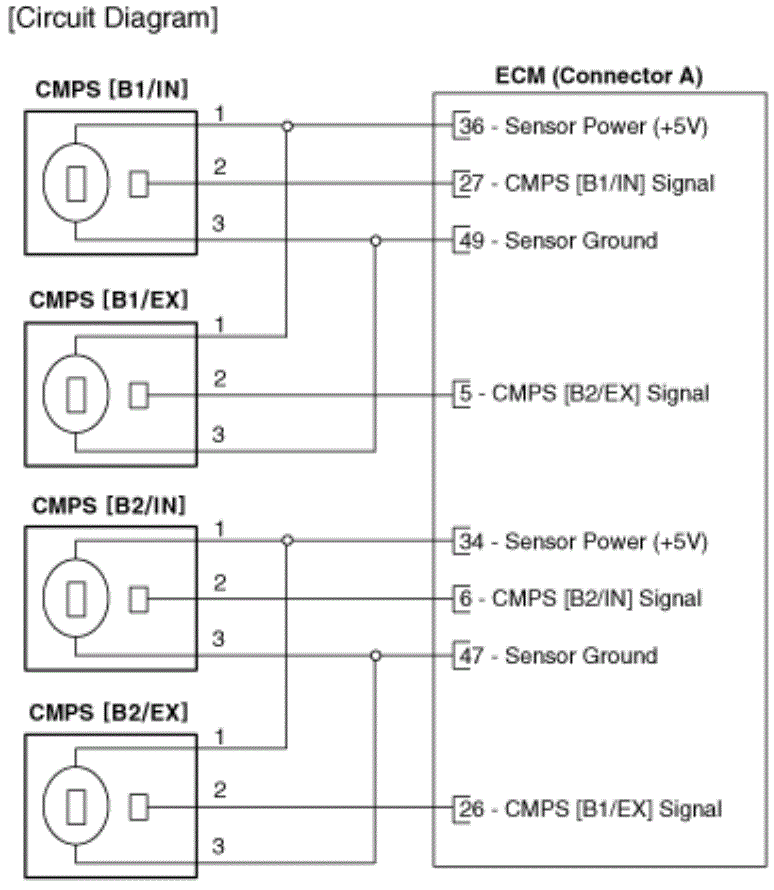

Circuit Diagram: Notes
[Connection Information]
TERMINAL AND FUNCTION DESCRIPTION
| Terminal | Connected | Function |
|---|---|---|
| 1 | ECU Connector A (36) | Sensor Power (+5v) |
| 2 | ECU Connector a (27) | CMPS [B1/IN] Signal |
| 3 | ECU Connector a (49) | Sensor Ground |
TERMINAL AND FUNCTION DESCRIPTION
| Terminal | Connected | Function |
|---|---|---|
| 1 | ECU Connector A (34) | Sensor Power (+5V) |
| 2 | ECU Connector A (5) | CMPS [B1/IN] Signal |
| 3 | ECU Connector A (47) | Sensor Ground |
TERMINAL AND FUNCTION DESCRIPTION
| Terminal | Connected | Function |
|---|---|---|
| 1 | ECM Connector A (34) | Sensor Powsr,+5V) |
| 2 | ECU Connector A (6) | CMPS [B2/IN] Signal |
| 3 | ECM Connector A (47) | Sensor Ground |
TERMINAL AND FUNCTION DESCRIPTION
| Terminal | Connected | Function |
|---|---|---|
| 1 | ECM Connector A (36) | Sensor Powsr,+5V) |
| 2 | ECM Connector A (26) | CMPS [B2/IN] Signal |
| 3 | ECM Connector A (49) | Sensor Ground |
