Components Location

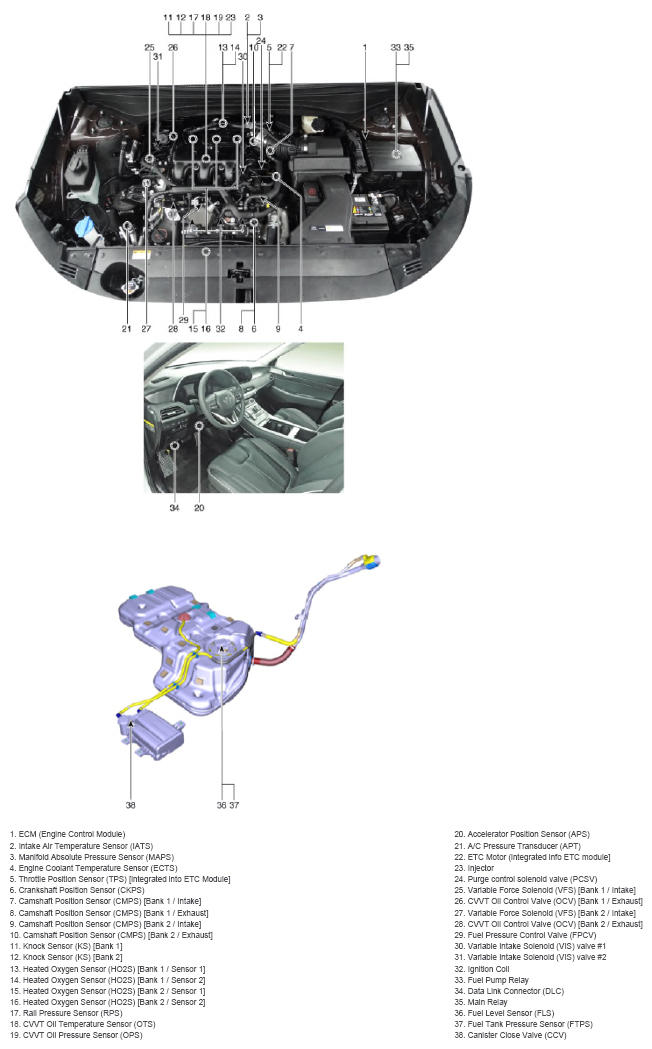

G15477054Courtesy of HYUNDAI MOTOR AMERICA

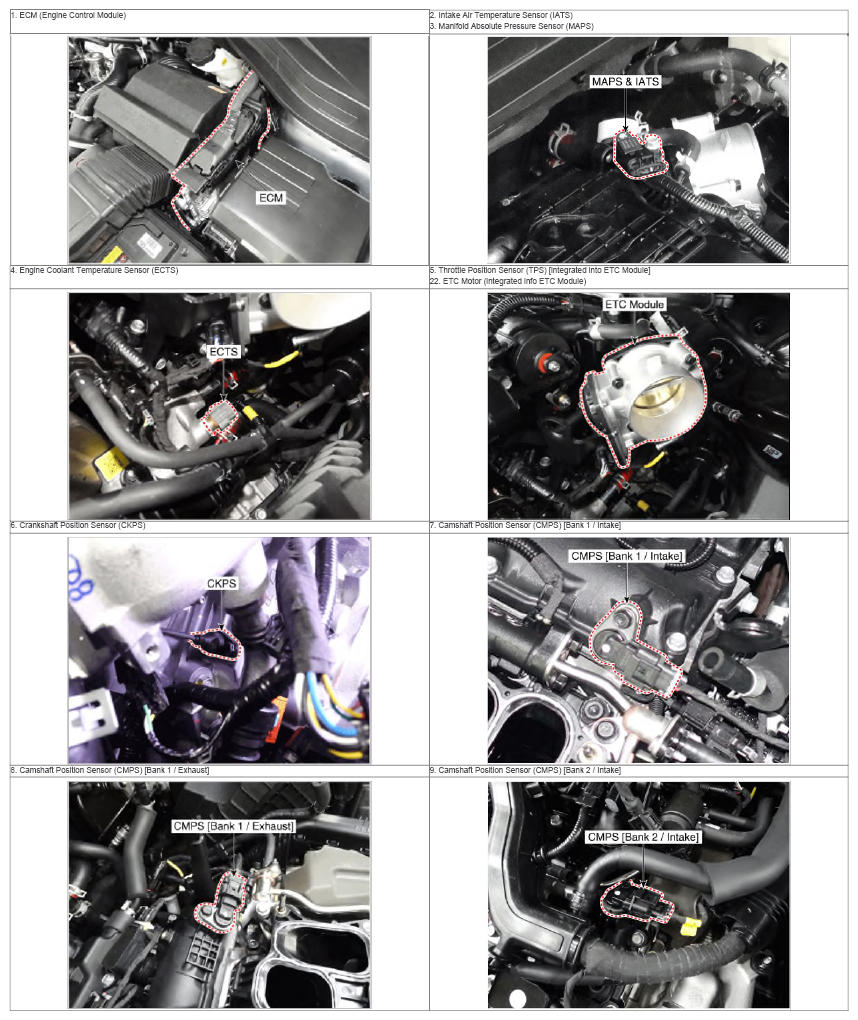

G15477055Courtesy of HYUNDAI MOTOR AMERICA

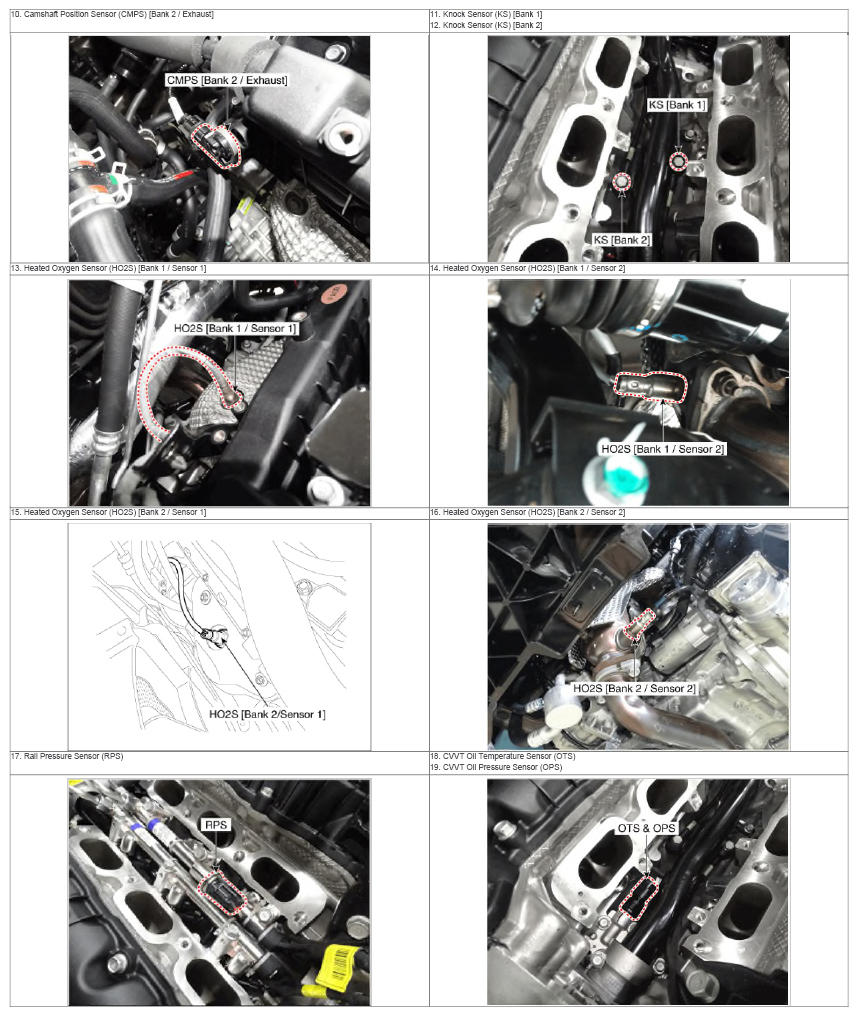

G15477056Courtesy of HYUNDAI MOTOR AMERICA

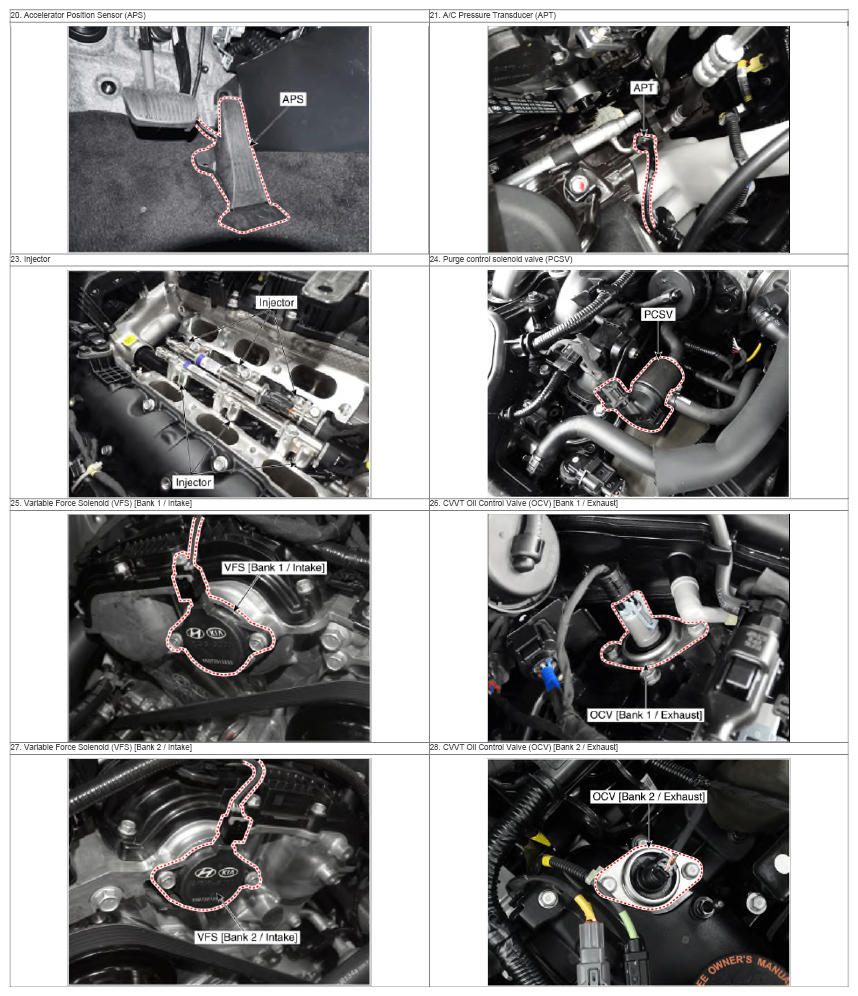

G15477057Courtesy of HYUNDAI MOTOR AMERICA

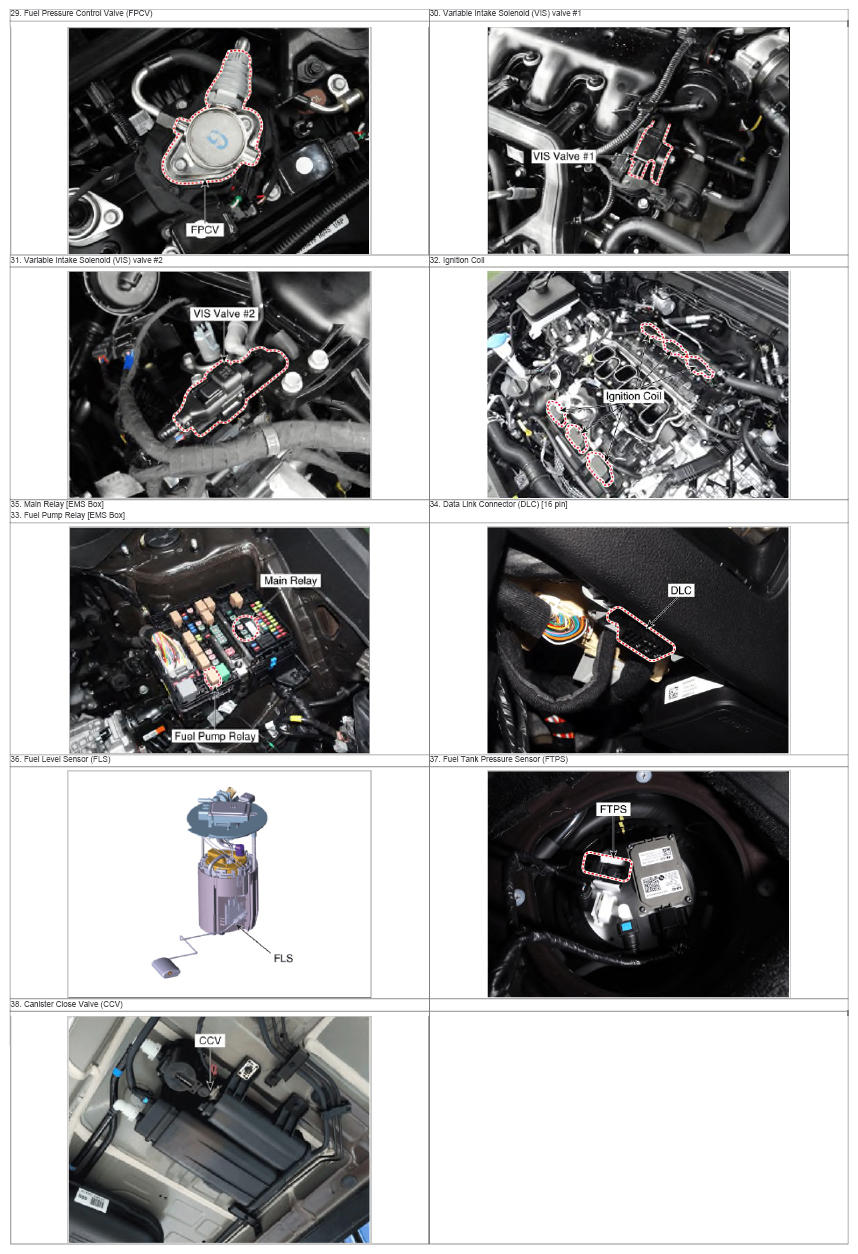

G15477058Courtesy of HYUNDAI MOTOR AMERICA
